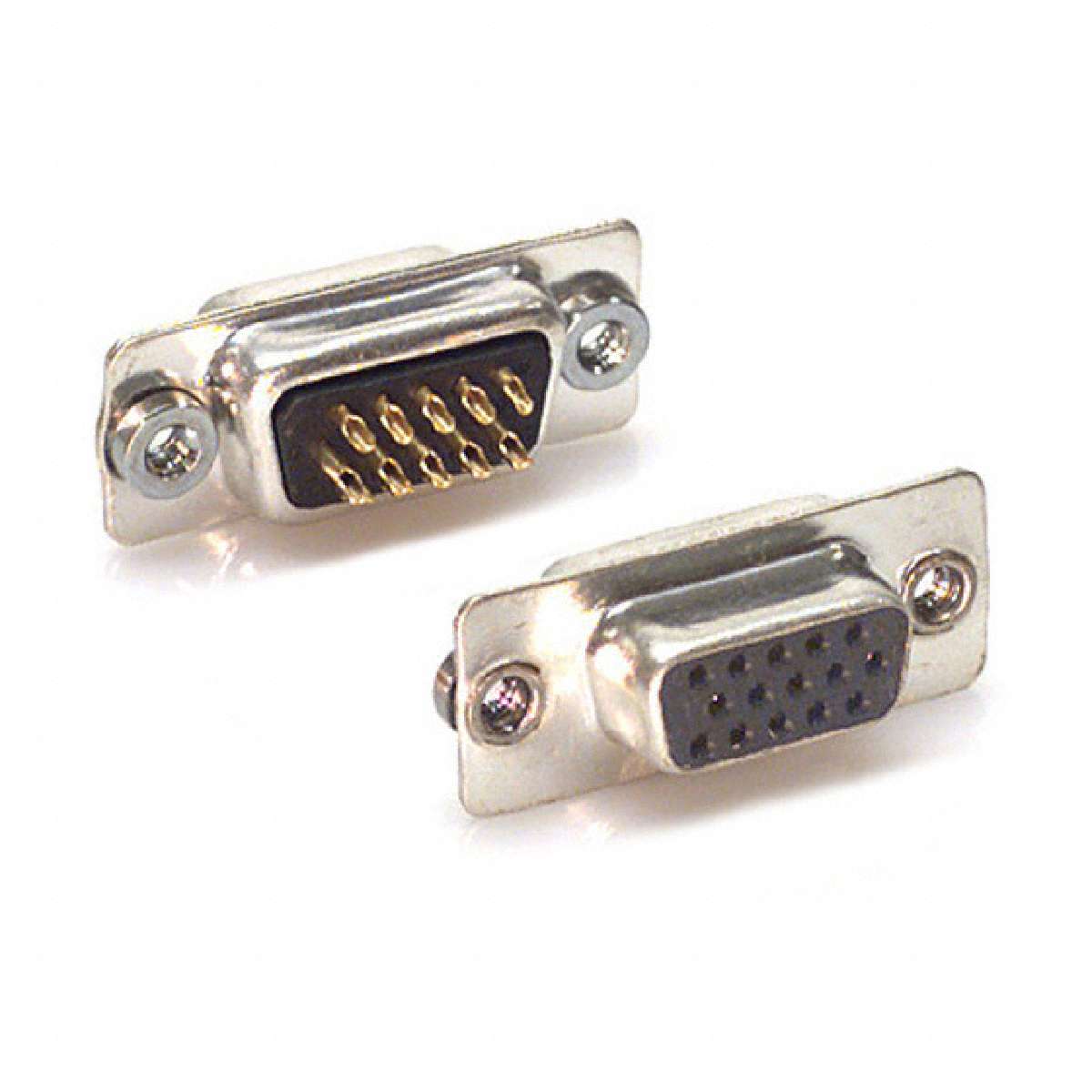

| Connector Style | D-Sub, High Density |
|---|---|
| Contact Finish | Gold |
| Product Training Modules | D-Sub Connectors |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Contact Finish Thickness | Flash |
| Contact Type | Signal |
| Standard Package | 80 |
| Packaging | Tray |
| Online Catalog | 180 Series |
| Number of Positions | 15 |
| Operating Temperature | -50°C ~ 100°C |
| 3D Model | 180-015-20(2,3)Lxx1.pdf 180-015-20(2,3)Lxx1.stp 180-015-20(2,3)Lxx1.igs |
| Number of Rows | 3 |
| Shell Material, Finish | Steel, Tin Plated |
| Shell Size, Connector Layout | 1 (DE, E) High Density |
| Other Related Documents | 180-015-202L011 Material Declaration |
| Mounting Type | Free Hanging (In-Line); Panel Mount |
| Termination | Solder Cup |
| Catalog Drawings | 180 Series Stamped Solder Cup 180 Series Stamped |
| Features | Shielded |
| Flange Feature | Board Side (4-40) |
| Series | 180 |
| Family | D-Sub Connectors |
| Connector Type | Receptacle, Female Sockets |
| Current Rating | 5A |
| ECCN | EAR99 |
