| 172-E15-113R011 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

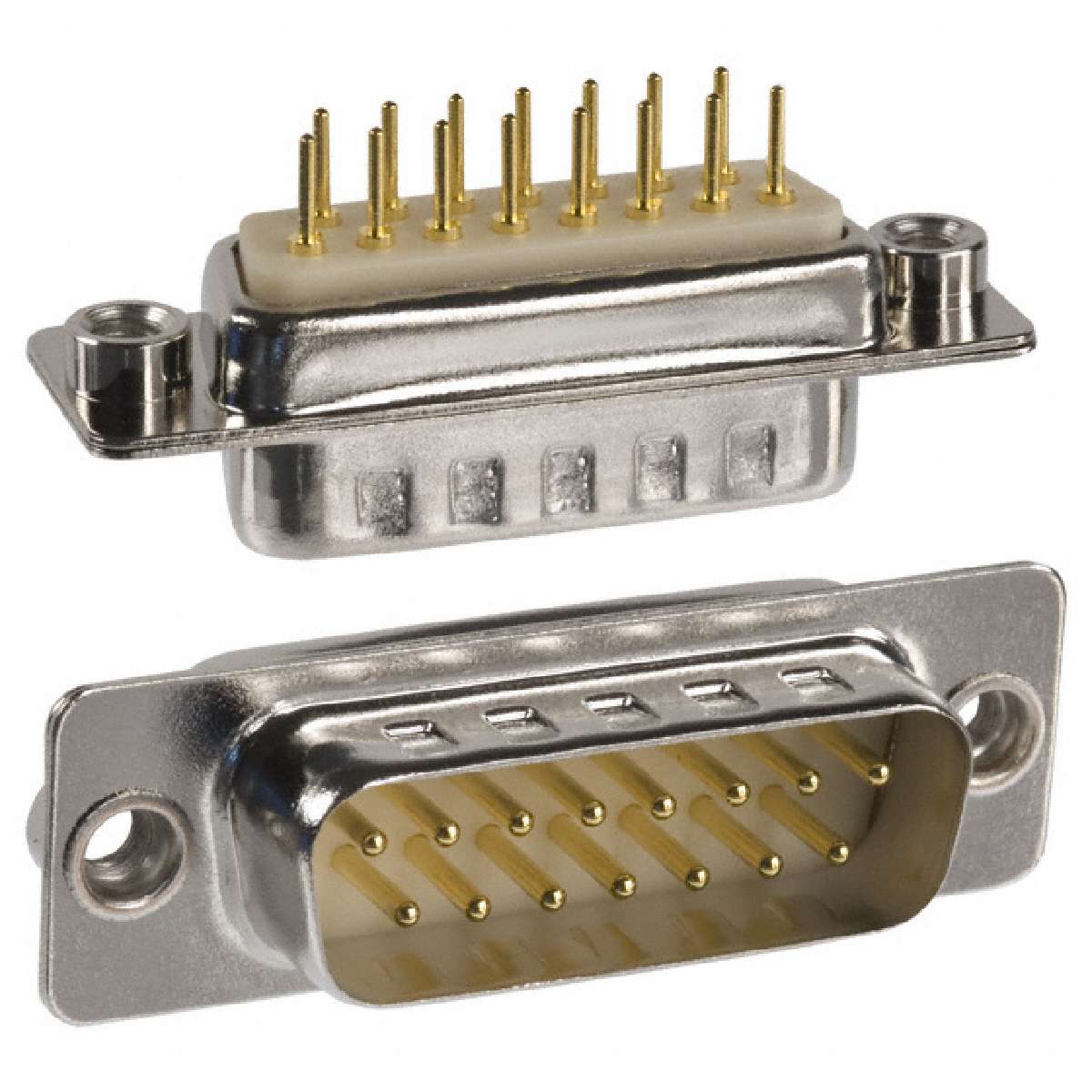

15 Position Male Plug Through Hole with Nickel Shell Rear 0.0158 Clinch Nut
|
||
| 标准包装：60 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Connector Style | D-Sub |
|---|---|
| Contact Finish | Gold |
| Product Training Modules | D-Sub Connectors |
| Housing Material | Polyamide (PA6T), Nylon 6T |
| Contact Finish Thickness | Flash |
| Contact Type | Signal |
| Standard Package | 60 |
| Features | Grounding Indents |
| Flange Feature | Board Side (4-40) |
| Series | 172-E, M Series |
| Family | D-Sub Connectors |
| Connector Type | Plug, Male Pins |
| Current Rating | 5A |
| ECCN | EAR99 |
| Shell Material, Finish | Steel, Nickel Plated |
| Shell Size, Connector Layout | 2 (DA, A) |
| Other Related Documents | 172-E15-113R011 Material Declaration |
| Mounting Type | Through Hole |
| Termination | Solder |
| Catalog Drawings | 170 Series Front Footprint 9,15,25-,37 Position 171, 172 Series Dip Solder |
| Color | White |
| Packaging | Tray |
| Online Catalog | 172-E Series |
| Number of Positions | 15 |
| Operating Temperature | -50°C ~ 100°C |
| 3D Model | 172-E15-113Rzz1.pdf 172-E15-113Rzz1.stp 172-E15-113Rzz1.igs |
| Number of Rows | 2 |
