| 16ZL330MEFC8X11.5 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

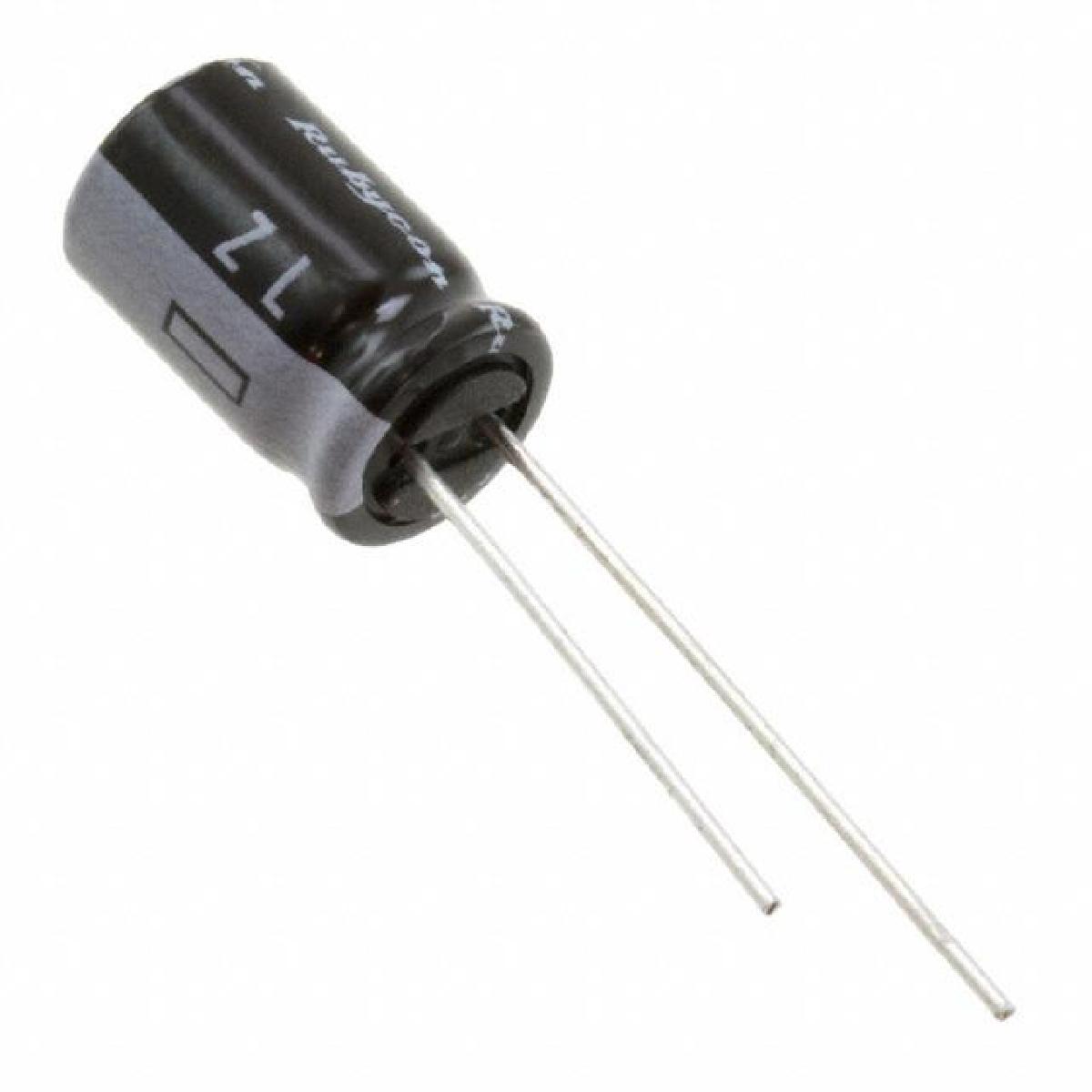

ZL Series 16 V 330 µF 8x11.5mm LS=3.5mm Radial Aluminum Electrolytic Capacitor
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Voltage Rating | 16V |
|---|---|
| Impedance | 72 mOhm |
| Lead Spacing | 0.138" (3.50mm) |
| Standard Package | 2,000 |
| Packaging | Bulk |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Family | Aluminum Capacitors |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 105°C |
| Categories | Capacitors ->Aluminum Electrolytic Capacitors |
| Tolerance | ±20% |
| Package / Case | Radial, Can |
| Capacitance | 330µF |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Ripple Current | 760mA |
| Series | ZL |
| Applications | General Purpose |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| ECCN | EAR99 |
