| PTH12050WAZ | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

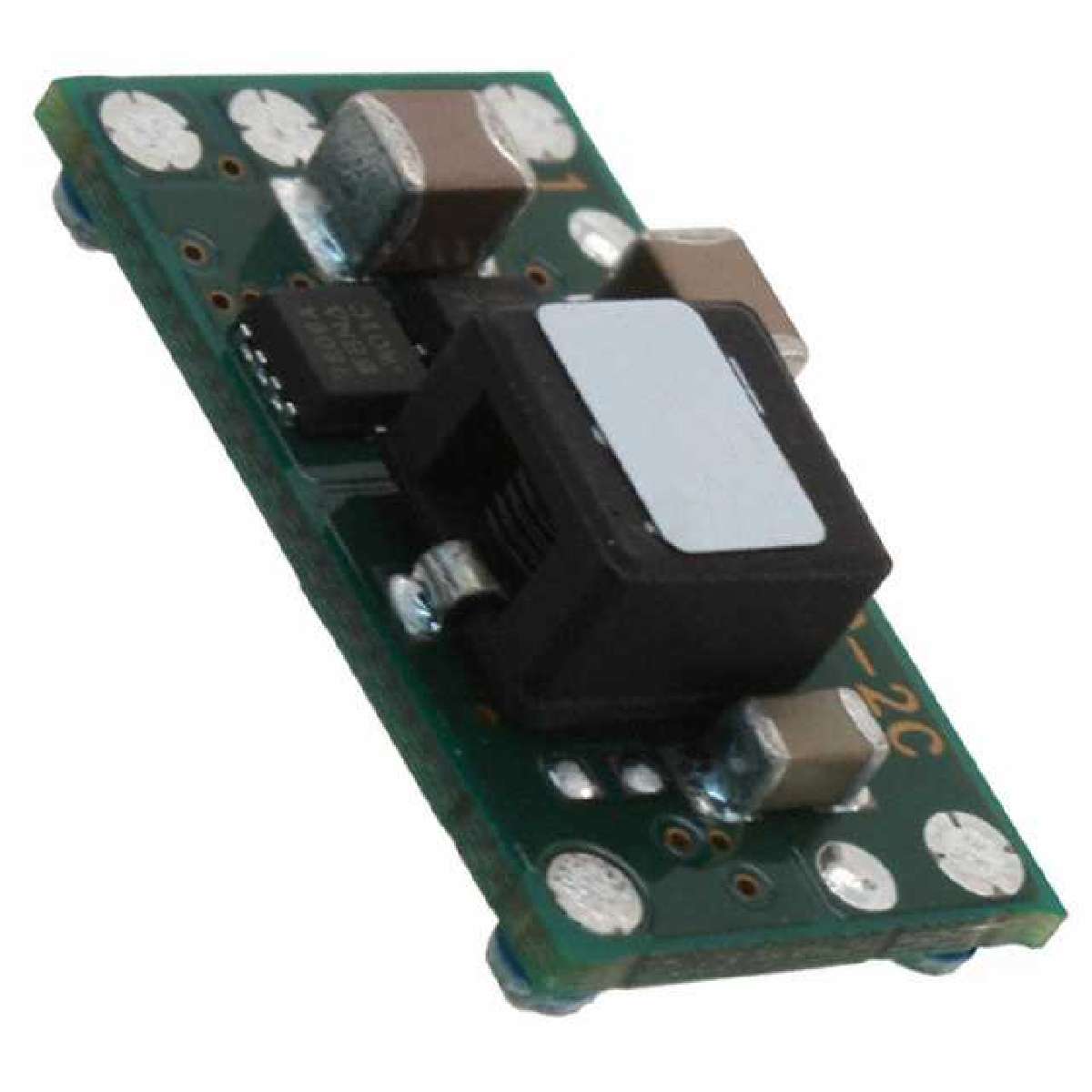

PTH12050WAZ 直流-直流电源模块, 12 V输入, 6针 DIP 模块封装
|
||
| 标准包装：56 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Type | Non-Isolated PoL Module |
|---|---|
| Number of Outputs | 1 |
| Power (Watts) - Manufacture Series | 33W |
| Size / Dimension | 0.87" L x 0.50" W x 0.34" H (22.1mm x 12.7mm x 8.6mm) |
| Category | Power Supplies - Board Mount |
| Manufacturer | Artesyn Embedded Technologies |
| Voltage - Output 1 | 1.2 ~ 5.5 V |
| Family | DC DC Converters |
| Applications | ITE (Commercial) |
| Operating Temperature | -40°C ~ 85°C |
| Packaging | Tray |
| Package / Case | 6-SMD Module |
| Current - Output (Max) | 6A |
| Features | Remote On/Off, OCP, UVLO |
| Part Status | Active |
| Efficiency | 93% |
| Voltage - Input (Max) | 13.2V |
| Series | PTH12050 |
| Voltage - Input (Min) | 10.8V |
| Mounting Type | Surface Mount |
| Power (Watts) - Max | 33W |
