| PQ1A-24V | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

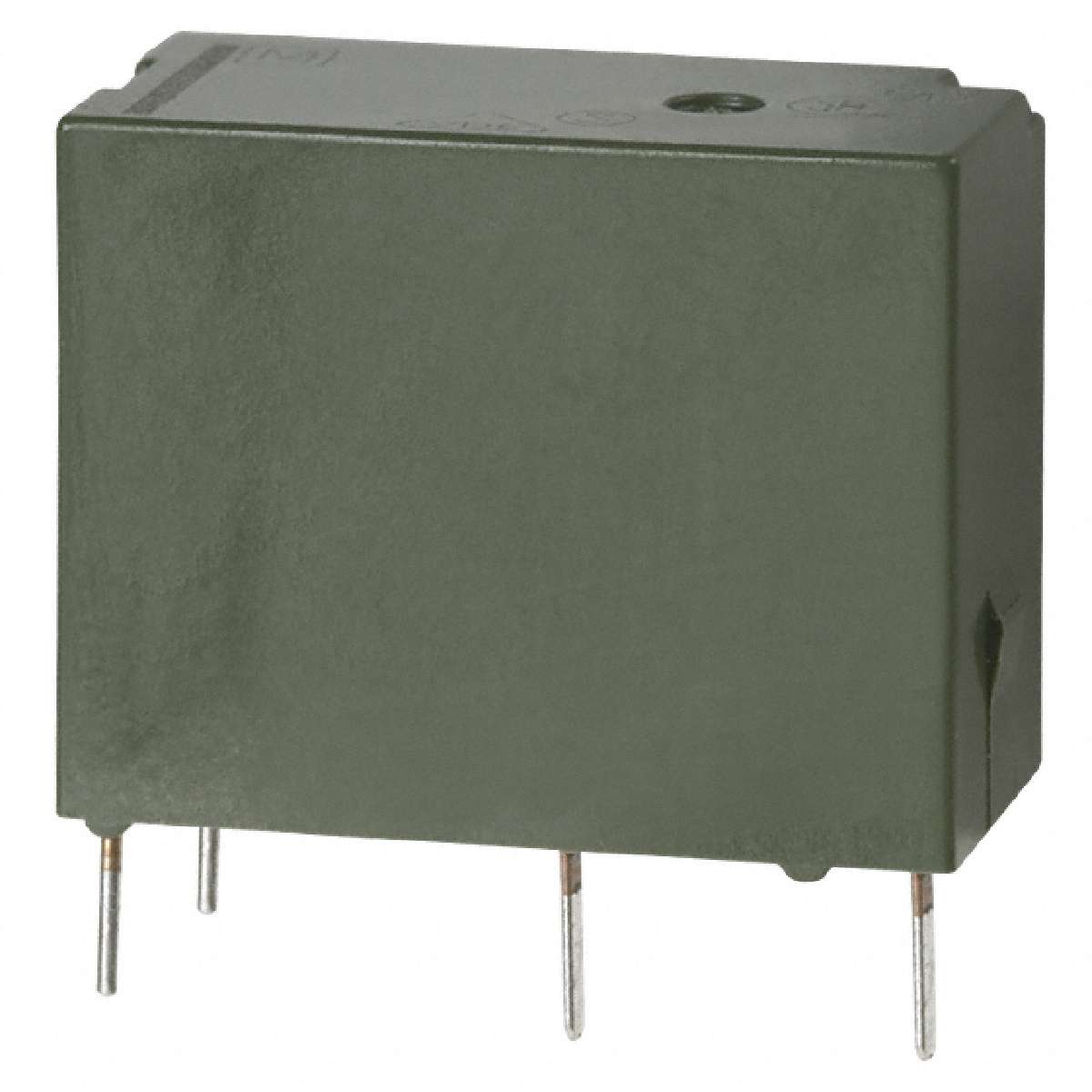

PQ Series 5 A SPST 24 VDC Through Hole Sealed Slim Non-Polarized Power Relay
|
||
| 标准包装：100 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Contact Form | SPST-NO (1 Form A) |
|---|---|
| Turn Off Voltage (Min) | 1.2 VDC |
| Operate Time | 20ms |
| Coil Type | Non Latching |
| Part Status | Active |
| Coil Current | 8.3mA |
| Release Time | 10ms |
| Contact Material | Silver Nickel (AgNi) |
| Series | PQ |
| Coil Voltage | 24VDC |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 70°C |
| ECCN | EAR99 |
| Coil Power | 200 mW |
| Termination Style | PC Pin |
| Turn On Voltage (Max) | 18 VDC |
| Features | Sealed - Fully |
| Category | Relays |
| Manufacturer | Panasonic Electric Works |
| Switching Voltage | 250VAC, 110VDC - Max |
| Relay Type | General Purpose |
| Coil Resistance | 2.88 kOhms |
| Family | Power Relays, Over 2 Amps |
| Contact Rating (Current) | 5A |
| Packaging | Tube |
