| ECQ-E4334KF | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

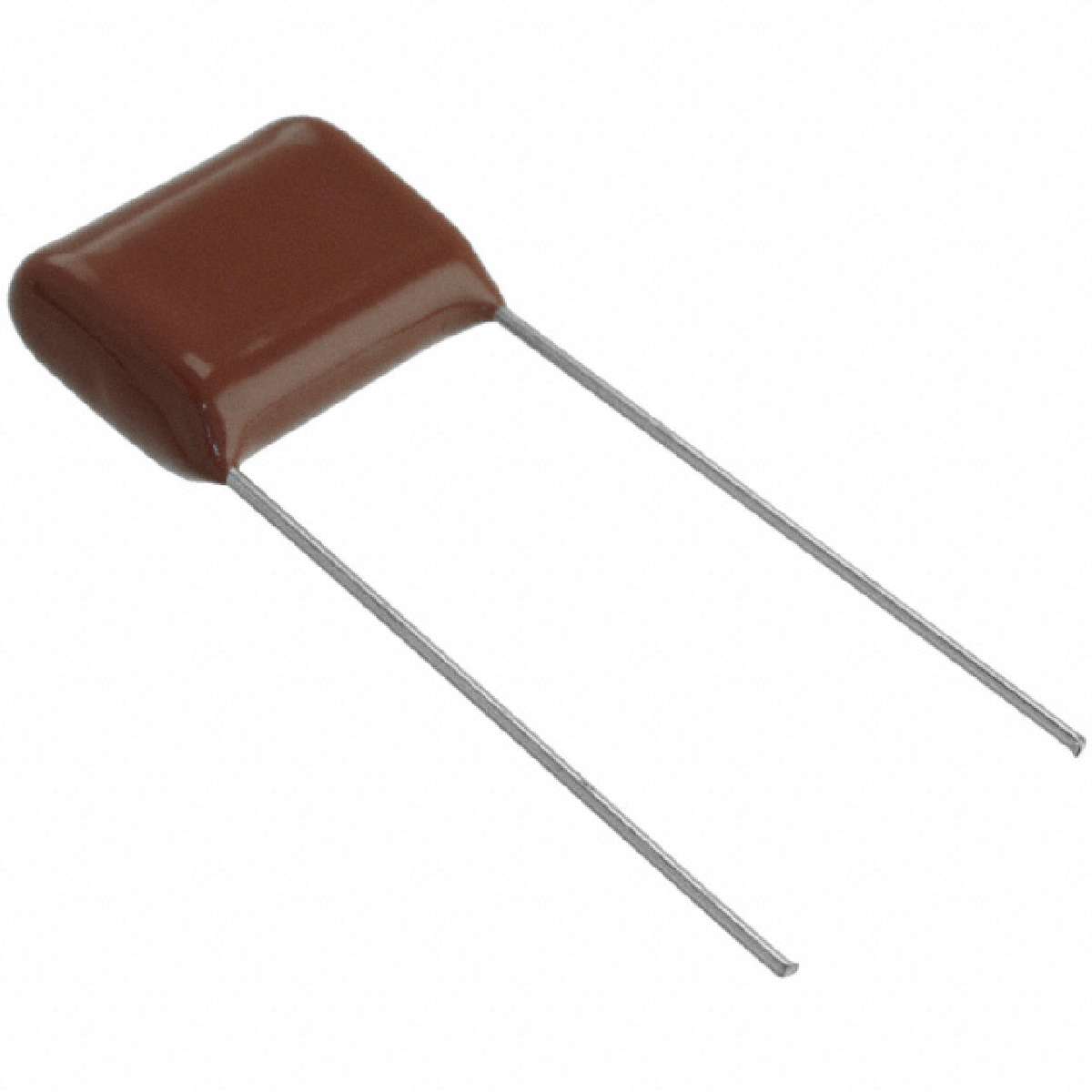

ECQE Series 400 V 0.33 uF ±10 % LS=15 mm Metallized Polyester Film Capacitor
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Capacitance | 0.33µF |
|---|---|
| Package / Case | Radial |
| Termination | PC Pins |
| Dielectric Material | Polyester, Metallized |
| Part Status | Active |
| Manufacturer | Panasonic Electronic Components |
| Series | ECQ-E(F) |
| Applications | General Purpose |
| Operating Temperature | -40°C ~ 105°C |
| ECCN | EAR99 |
| Lead Spacing | 0.591" (15.00mm) |
| Tolerance | ±10% |
| Voltage Rating - DC | 400V |
| Size / Dimension | 0.728" L x 0.276" W (18.50mm x 7.00mm) |
| Category | Capacitors |
| Height - Seated (Max) | 0.626" (15.90mm) |
| Family | Film Capacitors |
| Mounting Type | Through Hole |
| Packaging | Bulk |
