| 1375795-4 | ||
|---|---|---|
|
|
||
|
||

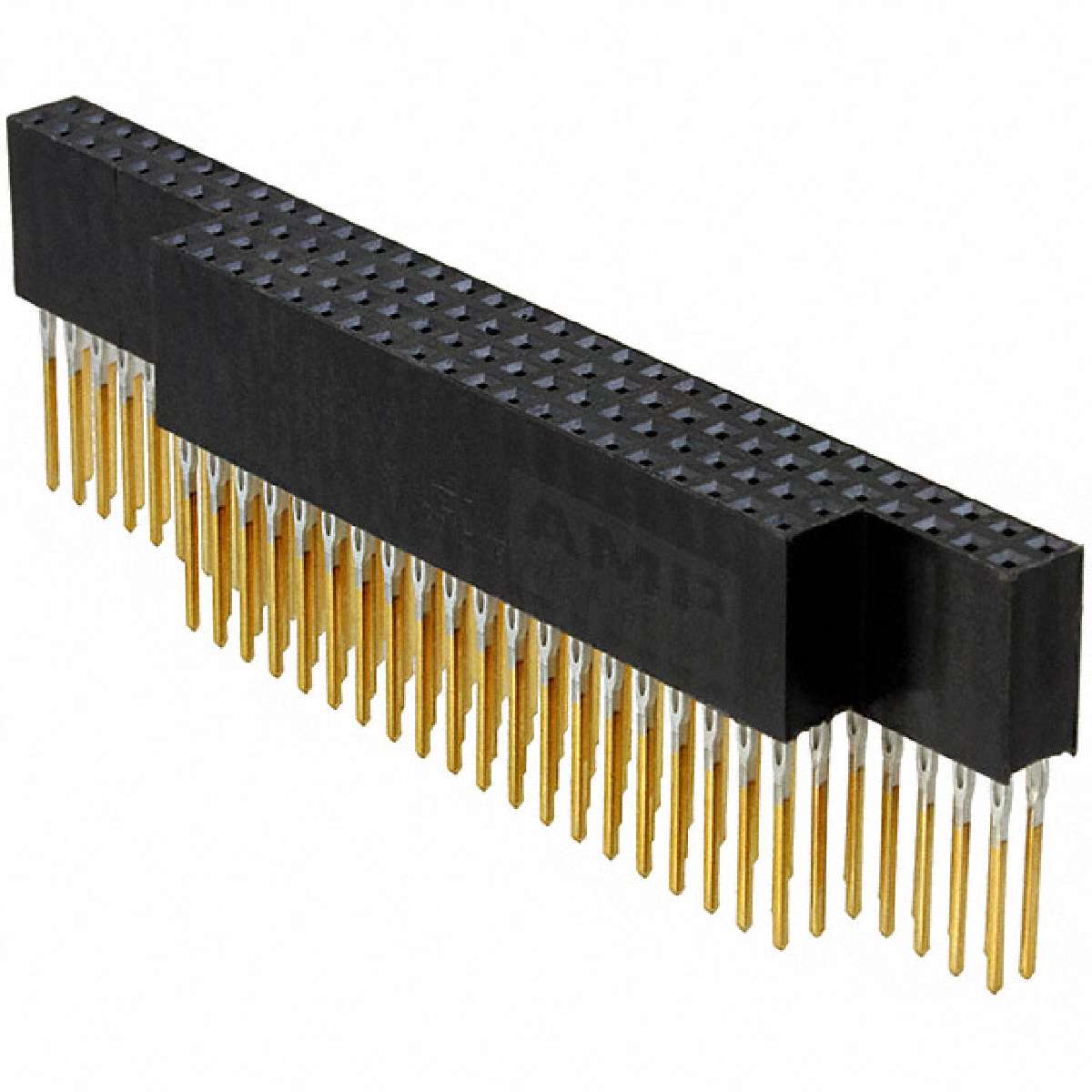

| Product description : 104 Position2.54 mm Receptacle Press Fit Connector PC/104 and PC/104 Plus | ||
| SPQ：105 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Connector Style | PC/104 |
|---|---|
| Number of Positions Loaded | All |
| Contact Finish Thickness | 15µin (0.38µm) |
| Termination | Press-Fit, Long Post |
| Color | Black |
| Online Catalog | AMPMODU Series |
| Number of Positions | 104 |
| RoHS Information | 1375795-4 Statement of Compliance RoHS 2 Statement |
| Connector Type | Stackthrough, Unkeyed (PC/104) |
| Number of Rows | 4 |
| ECCN | EAR99 |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Material Flammability Rating | UL94 V-0 |
| Standard Package | 21 |
| Packaging | Bulk |
| Series | AMPMODU, AMP |
| Family | Backplane Connectors - Specialized |
| Operating Temperature | -55°C ~ 105°C |
| 3D Model | 1375795-4.pdf |
| Pitch | 0.100" (2.54mm) |
