| LM1876TF/NOPB | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

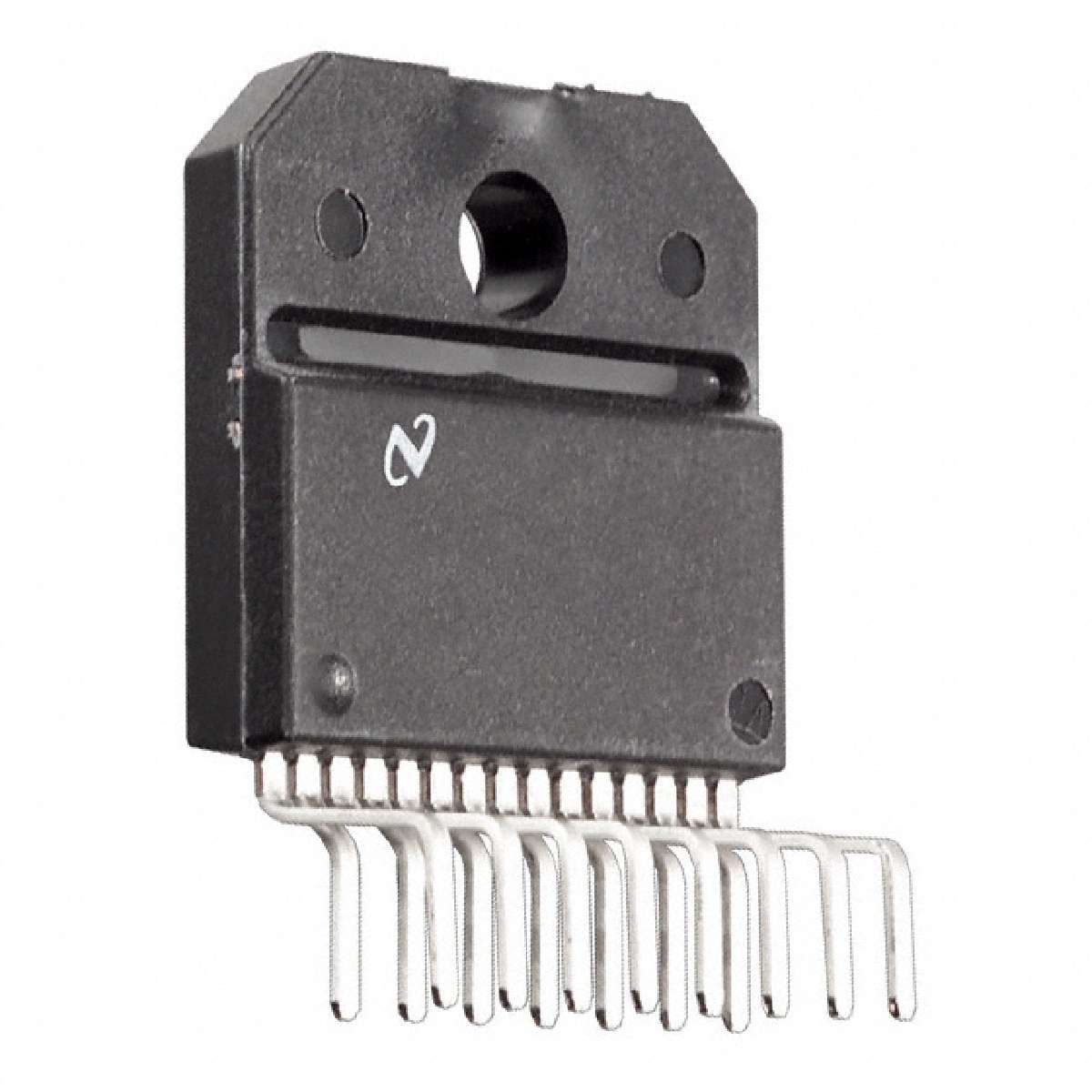

LM1876TF/NOPB AB 类 立体声 音频放大器, 7.5MHz 80dB, +85 °C, 15引脚 TO-220封装
|
||
| 标准包装：20 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Product: | Audio Amplifiers |
|---|---|
| Output Power: | 22 W |
| Description/Function: | Speaker |
| Packaging: | Tube |
| Maximum Dual Supply Voltage: | +/- 32 V |
| Pd - Power Dissipation: | 62.5 W |
| Class: | Class-AB |
| Tradename: | Overture |
| Audio - Load Impedance: | 8 Ohm |
| Height: | 10.77 mm |
| Minimum Dual Supply Voltage: | +/- 10 V |
| Unit Weight: | 0.081130 oz |
| Dual Supply Voltage: | +/- 12 V, +/- 15 V, +/- 18 V, +/- 24 V, +/- 28 V |
| Supply Type: | Single, Dual |
| Manufacturer: | Texas Instruments |
| Operating Supply Voltage: | 24 V, 28 V |
| GBP - Gain Bandwidth Product: | 7.5 MHz |
| Brand: | Texas Instruments |
| Product Category: | Audio Amplifiers |
| Output Signal Type: | Single |
| Maximum Operating Temperature: | + 85 C |
| THD plus Noise: | 0.08 % |
| PSRR - Power Supply Rejection Ratio: | 115 dB |
| Width: | 4.62 mm |
| Input Type: | Single |
| CMRR - Common Mode Rejection Ratio: | 80 dB |
| Minimum Operating Temperature: | - 20 C |
| Supply Voltage - Min: | 20 V |
| Package / Case: | TO-220 |
| Ib - Input Bias Current: | 500 nA |
| Supply Voltage - Max: | 64 V |
| Vos - Input Offset Voltage: | 15 mV |
| Mounting Style: | Through Hole |
| Number of Channels: | 2 Channel |
| Length: | 20.14 mm |
| Output Type: | 2-Channel Stereo |
| Series: | LM1876 |
| Factory Pack Quantity: | 20 |
| RoHS: | Details |
| Operating Supply Current: | 50 mA |
| Type: | Stereo |
登录之后就可发表评论
库存信息7到货提醒
供应商编码:SP1034
线下原厂及原厂授权代理商库存，接单后需要再次确认价格和数量
$5.865
￥48.71262144091200
| 1+ | $5.865 |
|---|---|
| 5+ | $5.68836 |
| 10+ | $5.51724 |
| 库存数量 | 16 | 库存更新于 2025-04-29 |
|---|---|---|
| 订货周期 | -- | |
| Supplier SPQ/MOQ | 1/1 | |
| 库存地 | -- | |
| 生产批次 | -- |
供应商编码:SP1034
线下原厂及原厂授权代理商库存，接单后需要再次确认价格和数量
$5.30555
￥44.06602996867583
| 20+ | $5.30555 |
|---|---|
| 40+ | $5.14643 |
| 80+ | $5.09938 |
| 库存数量 | 10 | 库存更新于 2025-04-29 |
|---|---|---|
| 订货周期 | -- | |
| Supplier SPQ/MOQ | 1/20 | |
| 库存地 | -- | |
| 生产批次 | -- |
供应商编码:SP1034
线下原厂及原厂授权代理商库存，接单后需要再次确认价格和数量
$5.68836
￥47.24551155576730
| 5+ | $5.68836 |
|---|---|
| 10+ | $5.51724 |
| 库存数量 | 10 | 库存更新于 2025-04-29 |
|---|---|---|
| 订货周期 | -- | |
| Supplier SPQ/MOQ | 1/5 | |
| 库存地 | -- | |
| 生产批次 | -- |
供应商编码:SP1027
线下原厂及原厂授权代理商库存，接单后需要再次确认价格和数量
$7.9298
￥65.86212882012278
查看价格阶梯
| 20+ | $7.9298 |
|---|---|
| 100+ | $6.9905 |
| 200+ | $6.2868 |
| 600+ | $6.11475 |
| 1000+ | $5.31185 |
| 2600+ | $5.1801 |
| 库存数量 | 900 | 库存更新于 2024-04-10 |
|---|---|---|
| 订货周期 | 6Weeks | |
| Supplier SPQ/MOQ | 20/20 | |
| 库存地 | -- | |
| 生产批次 | 2330 |
