| 110-83-314-41-001101 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

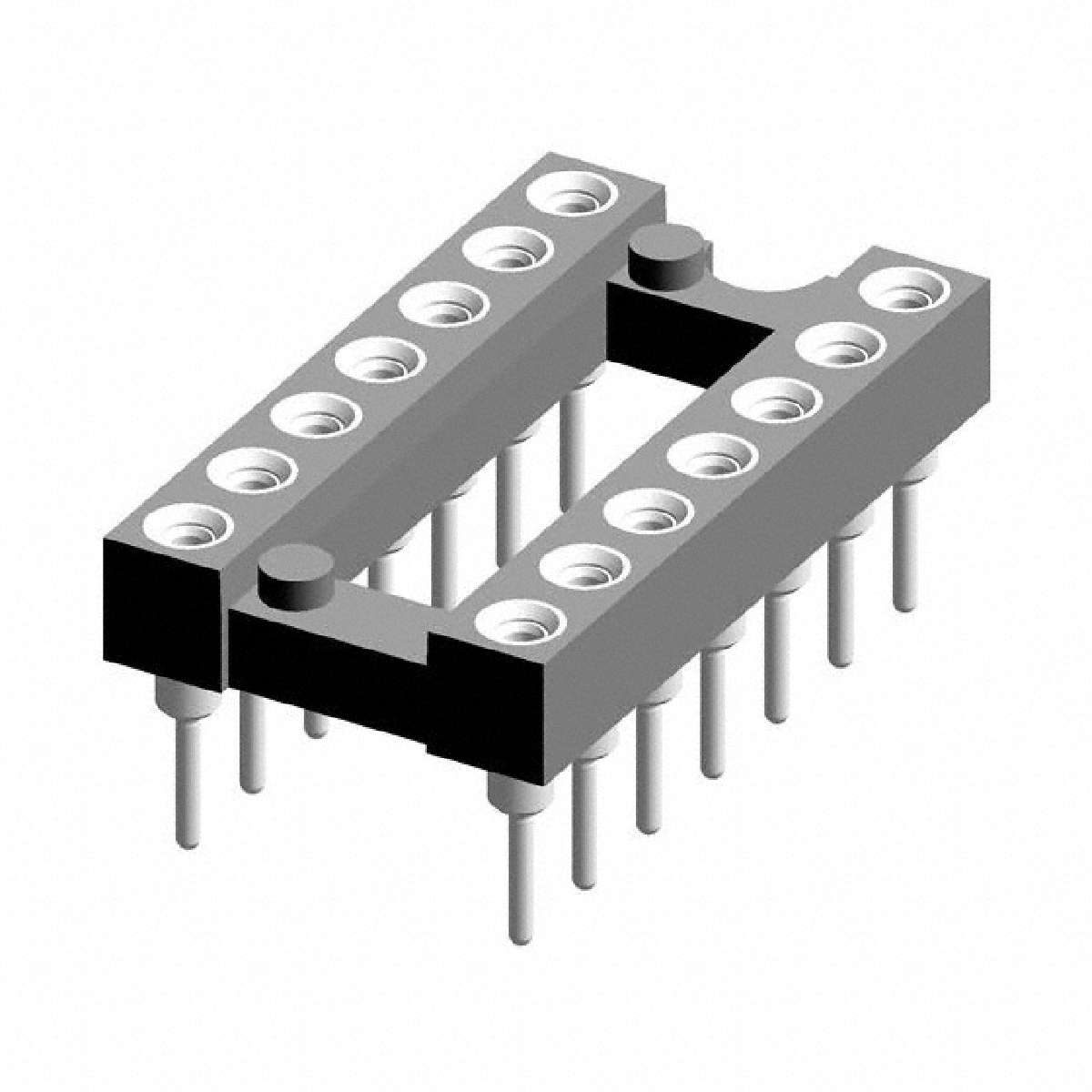

Conn DIP Socket SKT 14 POS 2.54mm Solder ST Thru-Hole Box
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Pitch - Post | 0.100" (2.54mm) |
|---|---|
| Type | DIP, 0.3" (7.62mm) Row Spacing |
| Housing Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled |
| Contact Material - Mating | Beryllium Copper |
| Mounting Type | Through Hole |
| Termination | Solder |
| Contact Finish - Post | Tin |
| Packaging | Tube |
| Contact Finish Thickness - Mating | 29.5µin (0.75µm) |
| Family | Sockets for ICs, Transistors |
| RoHS Information | RoHS Declaration |
| Current Rating | 1A |
| Termination Post Length | 0.125" (3.18mm) |
| Number of Positions or Pins (Grid) | 14 (2 x 7) |
| Contact Material - Post | Brass |
| Pitch - Mating | 0.100" (2.54mm) |
| Material Flammability Rating | UL94 V-0 |
| Standard Package | 551 |
| Features | Open Frame |
| Contact Finish - Mating | Gold |
| Series | 110 |
| Contact Resistance | 10 mOhm |
| Operating Temperature | -55°C ~ 125°C |
