| 105PPA122K | ||
|---|---|---|
|
|
||
|
||

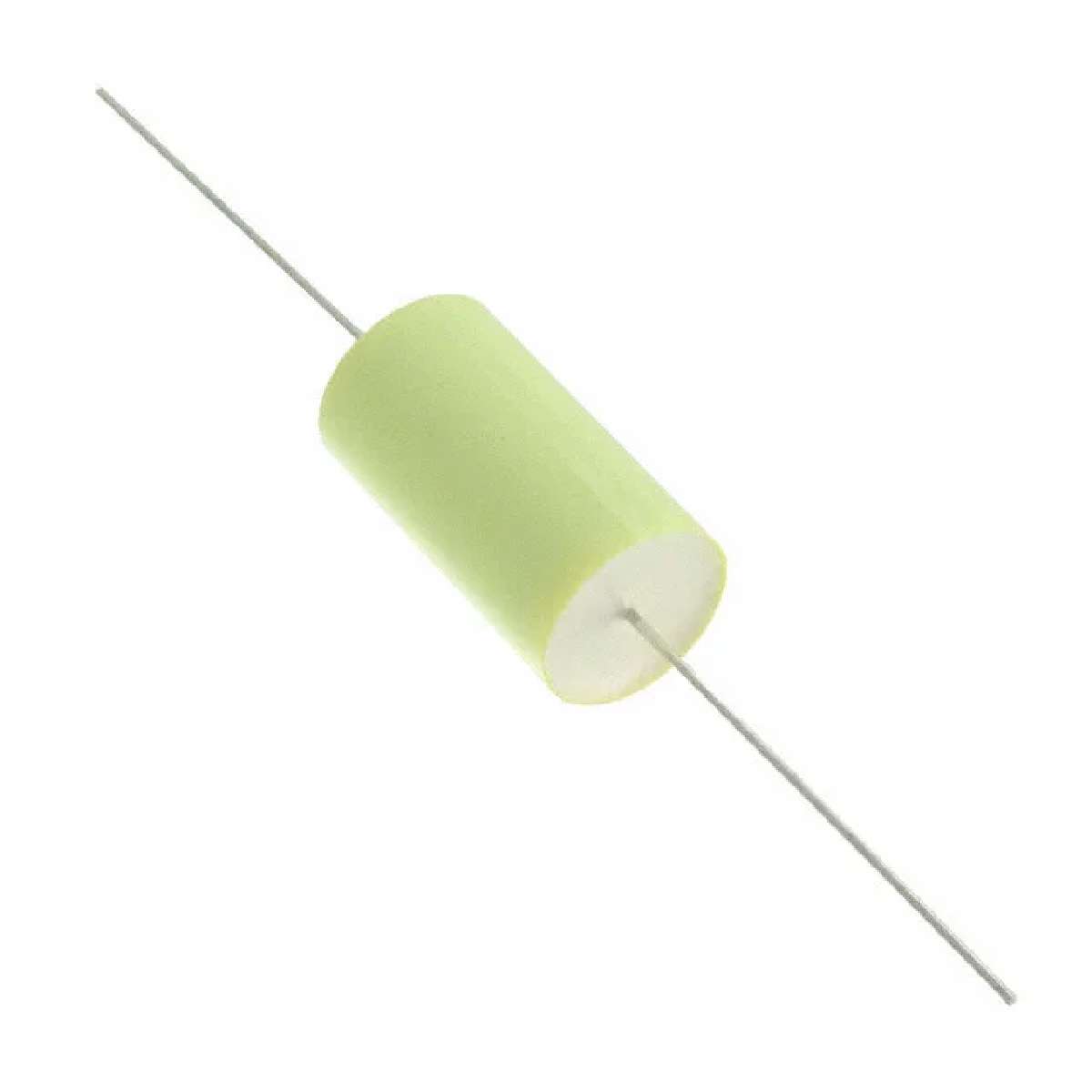

| Product description : PPA Series 1200 V 1 uF ±10 % Axial Polypropylene Film Capacitor | ||
| SPQ：10 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Termination | PC Pins |
|---|---|
| Package / Case | Axial |
| ESR (Equivalent Series Resistance) | 3.4 mOhm |
| Voltage Rating - DC | 1200V (1.2kV) |
| Size / Dimension | 1.260" Dia x 1.811" L (32.00mm x 46.00mm) |
| Category | Capacitors |
| Series | PPA |
| Applications | DC Link, DC Filtering; High Frequency, Switching; Snubber |
| Operating Temperature | -55°C ~ 85°C |
| ECCN | EAR99 |
| Tolerance | ±10% |
| Capacitance | 1µF |
| Voltage Rating - AC | 550V |
| Dielectric Material | Polypropylene (PP), Metallized |
| Part Status | Active |
| Manufacturer | Illinois Capacitor |
| Family | Film Capacitors |
| Mounting Type | Through Hole |
| Packaging | Bulk |
