AMIS30521C5212RG

ACTIVE 32-NQFP (7x7) EAR99
Product description : AMIS30521 Series 4.75 V -5.25 V 1.2A Micro-Stepping Motor Driver-VQFN
SPQ：1
Datasheet : AMIS30521C5212RG.pdf

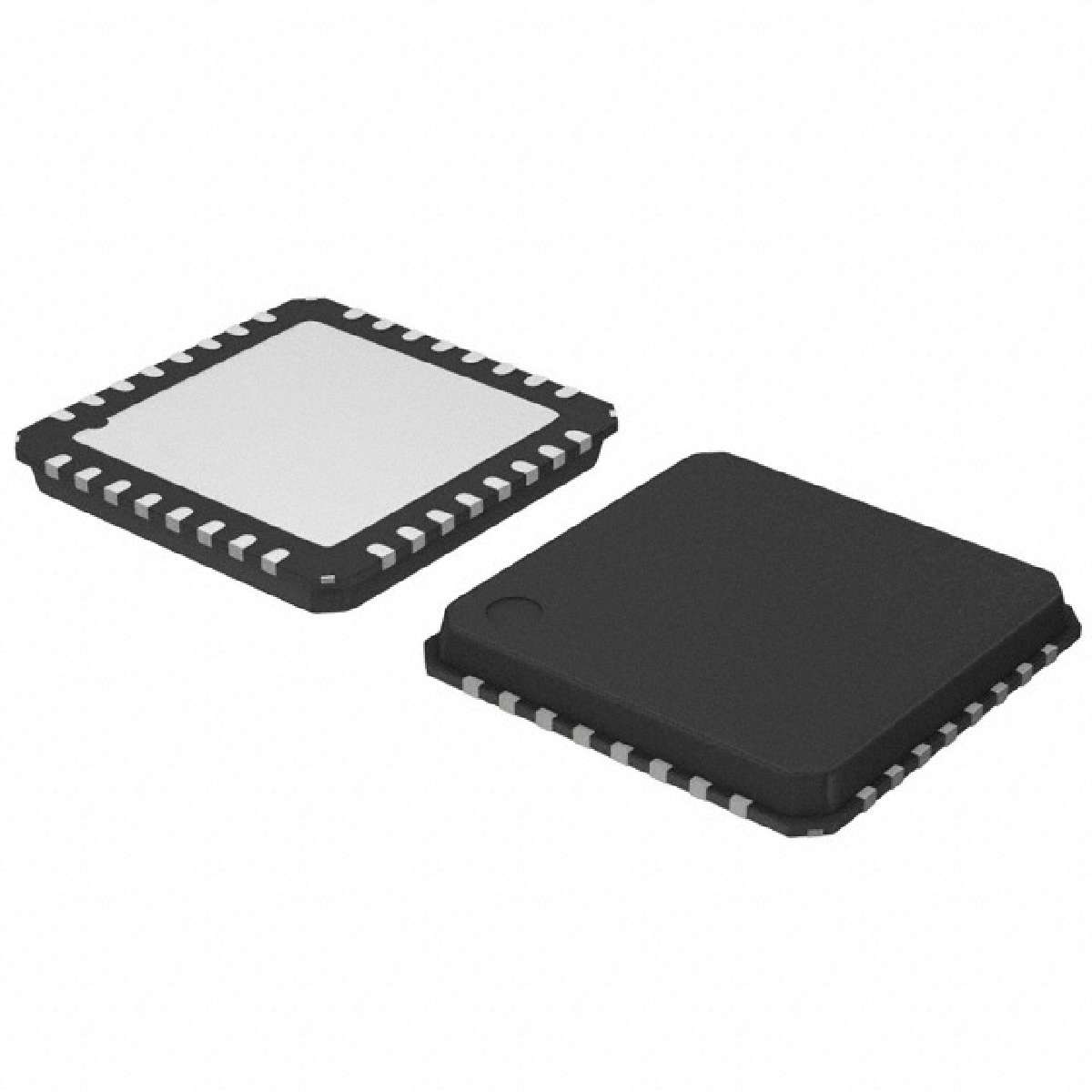

Package / Case	32-VQFN Exposed Pad
Output Configuration	Half Bridge (4)
Function	Driver - Fully Integrated, Control and Power Stage
Current - Output	1.2A
Interface	SPI
Manufacturer	ON Semiconductor
Voltage - Load	6 V ~ 30 V
Applications	General Purpose
Operating Temperature	-40°C ~ 172°C (TJ)
Packaging	Tape & Reel (TR)
Step Resolution	1 ~ 1/32
Voltage - Supply	4.75 V ~ 5.25 V
Supplier Device Package	32-NQFP (7x7)
Part Status	Active
Category	Integrated Circuits (ICs)
Motor Type - Stepper	Bipolar
Family	PMIC - Motor Drivers, Controllers
Mounting Type	Surface Mount
Technology	Power MOSFET
ECCN	EAR99

Datasheet： AMIS30521C5212RG.pdf
