| LM2904PWR | ||
|---|---|---|
|
||
|
||
| 产品描述：

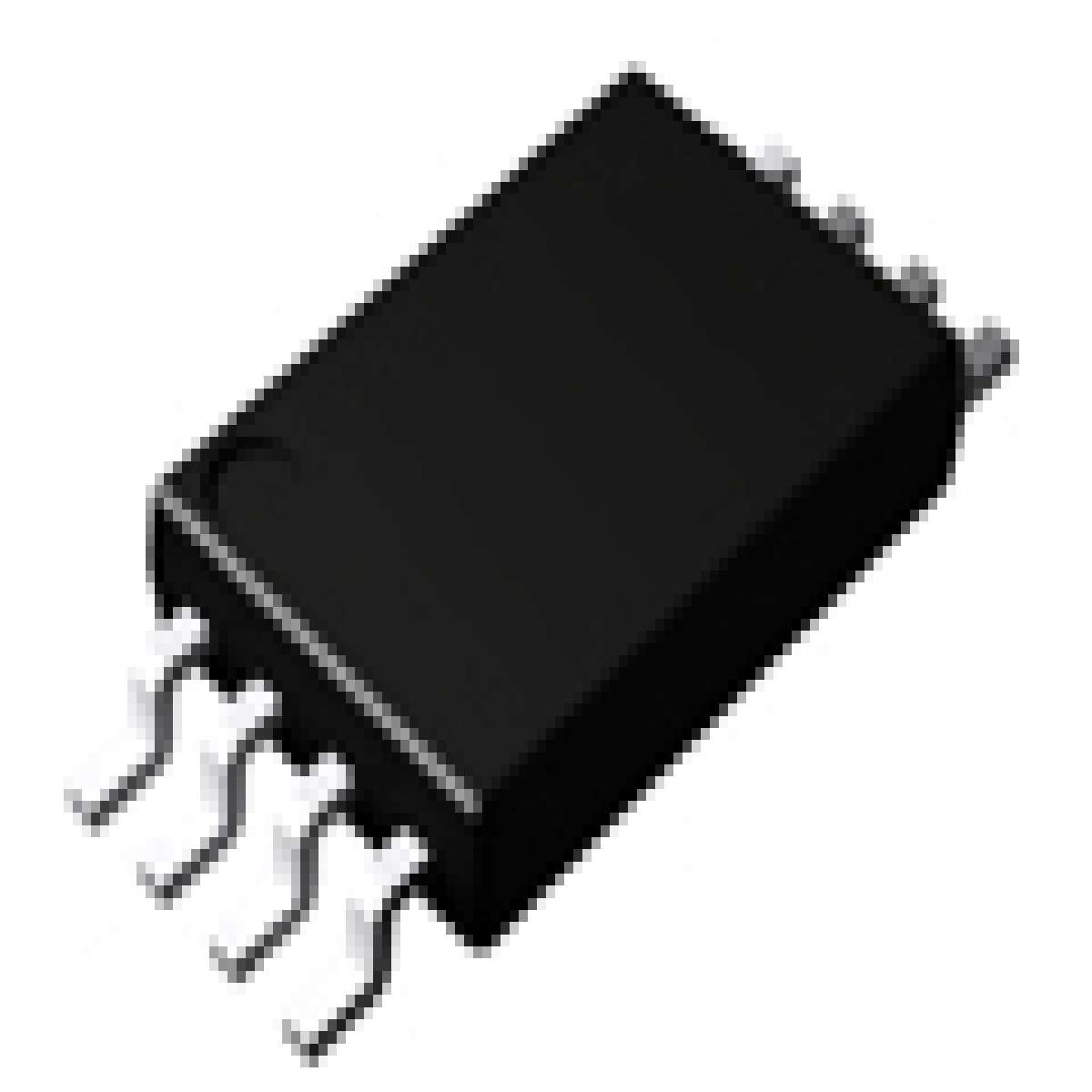

TSSOP 8/A°/DUAL GENERAL-PURPOSE OPERATIONAL AMPLIFIER
|
||
| 标准包装：2000 | ||
| 数据手册： -- | ||
| ECAD模型:
|
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Package / Case | 8-TSSOP (0.173\", 4.40mm Width) |
|---|---|
| Gain Bandwidth Product | 700kHz |
| Current - Output / Channel | 30mA |
| Part Status | Not For New Designs |
| Manufacturer | Rohm Semiconductor |
| Current - Input Bias | 20nA |
| Family | Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| Packaging | Tape & Reel (TR) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Voltage - Input Offset | 3mV |
| Voltage - Supply, Single/Dual (±) | 3 V ~ 26 V, ±1.5 V ~ 13 V |
| Supplier Device Package | 8-TSSOP |
| Category | Integrated Circuits (ICs) |
| Number of Circuits | 2 |
| Series | Trophy |
| Amplifier Type | General Purpose |
| Slew Rate | 0.3 V/µs |
| Current - Supply | 1mA |
| Categories | Integrated Circuits (ICs) -> Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps |
| Base Part Number | LM2904 |
