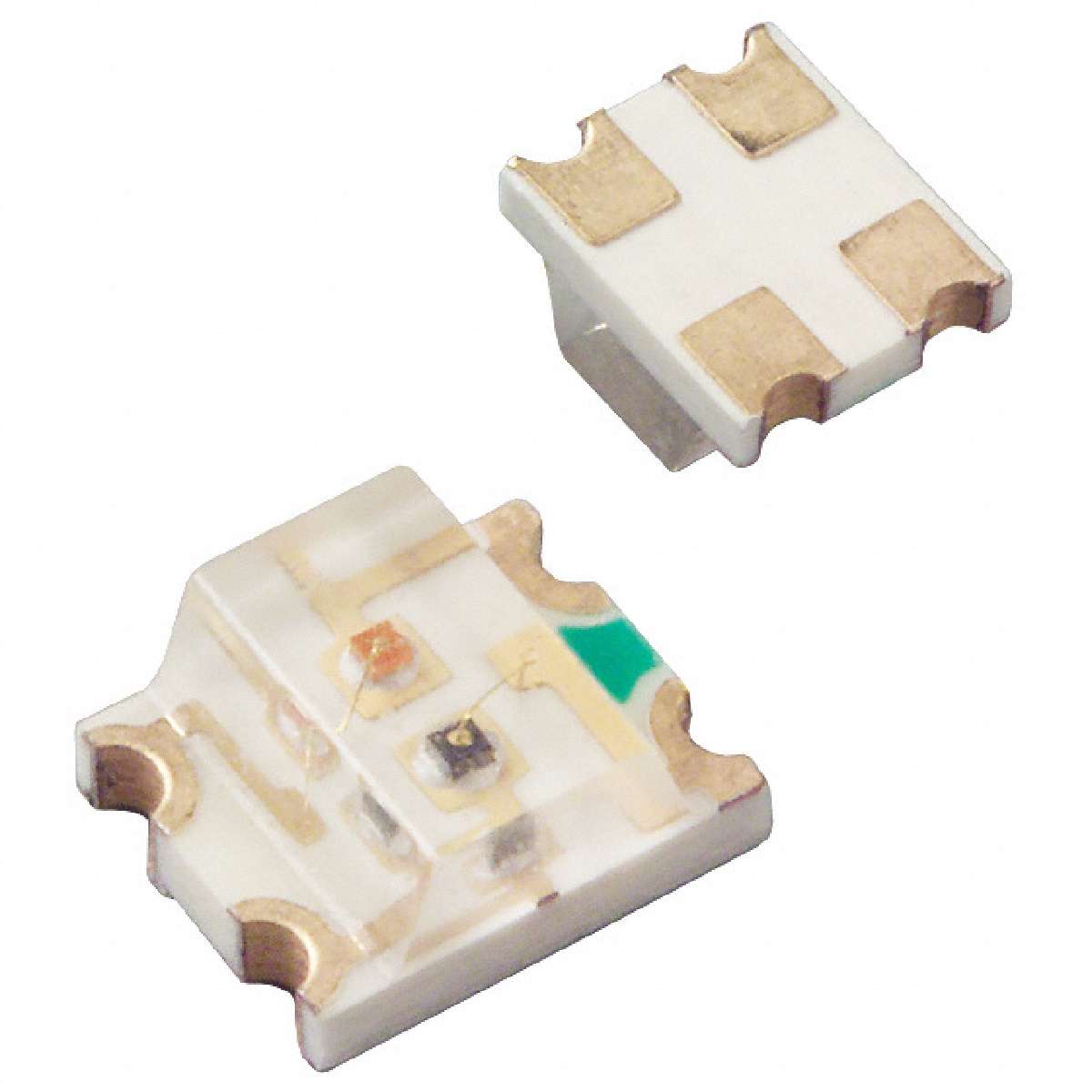

| BRPG1201W-TR | ||
|---|---|---|
|
|
||
|
||
| Product description : Red/Green 3 x 2.5 mm 160/156° 12.8/4.8 mcd White Diffused 2.1/1.9 V LED SMT | ||
| SPQ：2500 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Package / Case | 4-SMD, No Lead |
|---|---|
| Supplier Device Package | SMD |
| Size / Dimension | 3.00mm L x 2.50mm W |
| Category | Optoelectronics |
| Lens Style/Size | Rectangle with Flat Top, 1.50mm x 2.50mm |
| Wavelength - Dominant | 567nm Green, 647nm Red |
| Current - Test | 20mA Green, 20mA Red |
| Wavelength - Peak | 560nm Green, 660nm Red |
| Height (Max) | 1.90mm |
| Lens Transparency | Clear |
| Packaging | Cut Tape (CT) |
| Viewing Angle | 156°, 149° Green, 160°, 150° Red |
| Color | Green, Red |
| Part Status | Active |
| Manufacturer | Stanley Electric Co |
| Lens Color | Colorless |
| Voltage - Forward (Vf) (Typ) | 2.1V Green, 1.7V Red |
| Series | 1201W |
| Family | LED Indication - Discrete |
| Mounting Type | Surface Mount |
| Millicandela Rating | 4.8mcd Green, 12.8mcd Red |
| ECCN | EAR99 |
