| 100ZLH470MEFCGC16X31.5 | ||
|---|---|---|
|
|
||
|
||

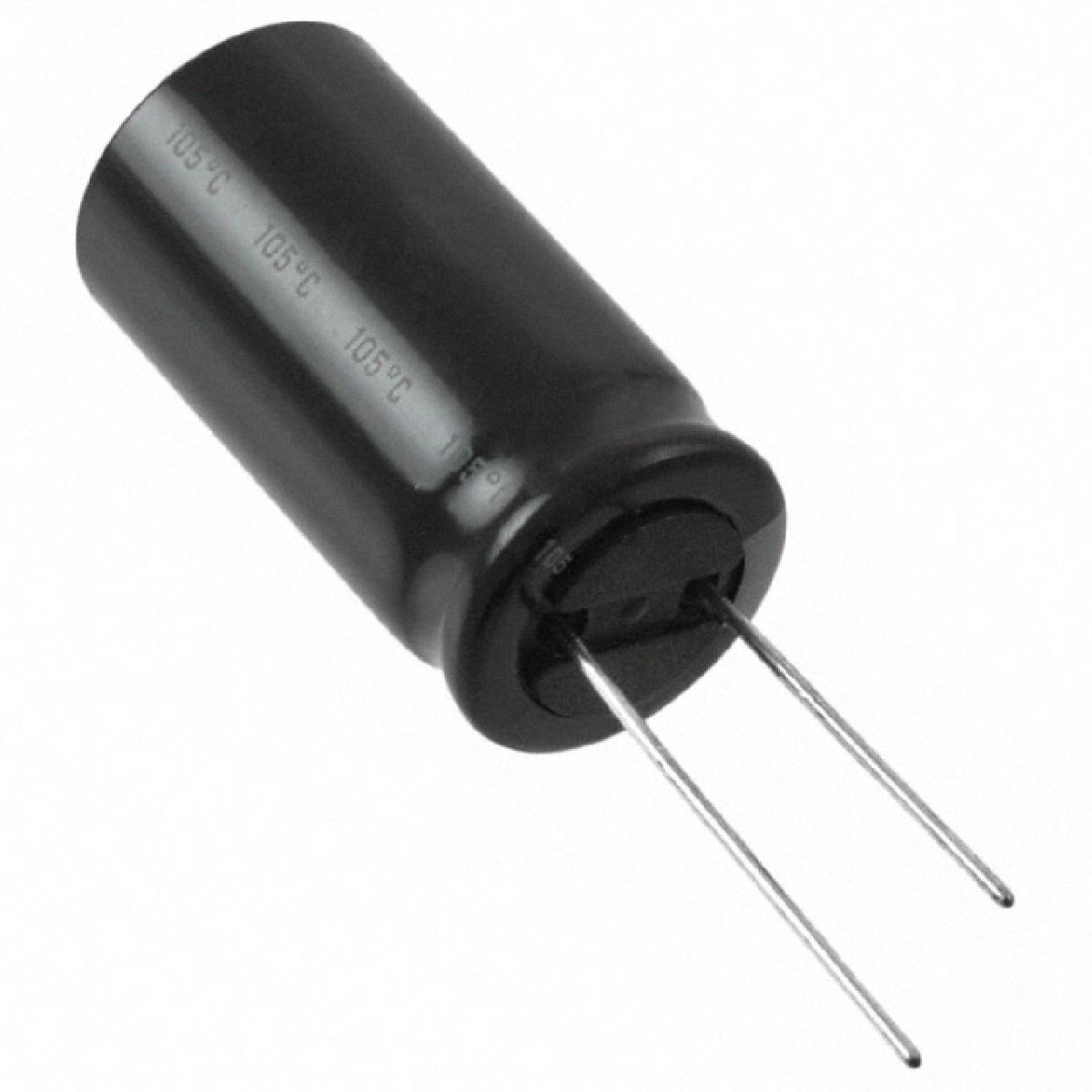

| Product description : CAP ALUM 470UF 20% 100V RADIAL | ||
| SPQ：200 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Voltage Rating | 100V |
|---|---|
| Impedance | 33 mOhm |
| Lead Spacing | 0.295" (7.50mm) |
| Standard Package | 200 |
| Packaging | Tape & Box (TB) |
| Height - Seated (Max) | 1.319" (33.50mm) |
| Family | Aluminum Capacitors |
| Mounting Type | Through Hole |
| Operating Temperature | -40掳C ~ 105掳C |
| Categories | Capacitors ->Aluminum Electrolytic Capacitors |
| Ripple Current @ Low Frequency | 1.32A @ 120Hz |
| Packaging | Tape & Box (TB) |
| Tolerance | ±20% |
| Package / Case | Radial, Can |
| Capacitance | 470µF |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Ripple Current | 1.32A |
| Series | ZLH |
| Applications | General Purpose |
| Lifetime @ Temp. | 10000 Hrs @ 105掳C |
| Polarization | Polar |
| Categories | Capacitors ->Aluminum Electrolytic Capacitors |
| Ripple Current @ Low Frequency | 1.32A @ 120Hz |
| Packaging | Tape & Box (TB) |
