| 100YXF470MEFCGC16X31.5 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

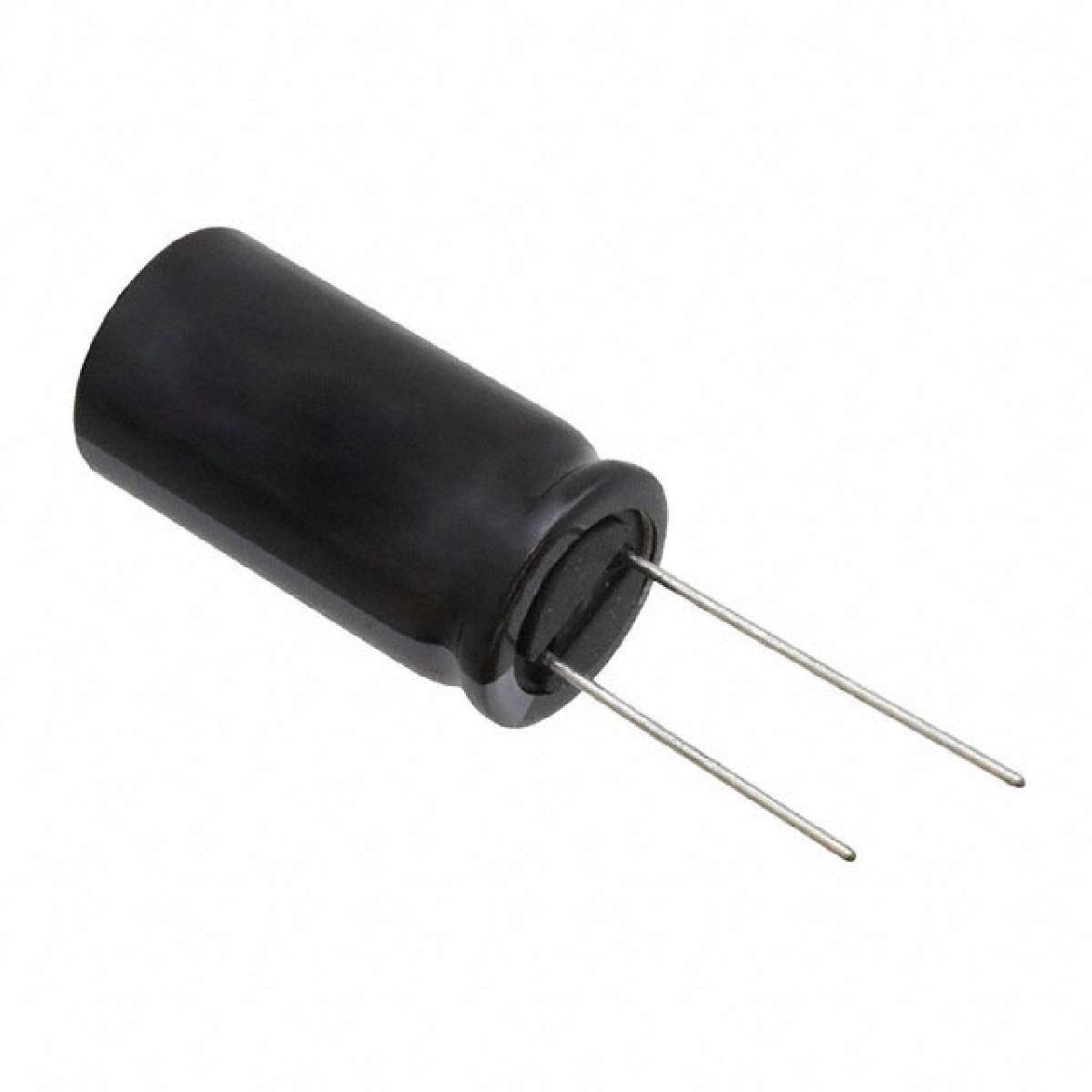

CAP ALUM 470UF 20% 100V RADIAL
|
||
| 标准包装：200 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Voltage Rating | 100V |
|---|---|
| Package / Case | Radial, Can |
| Capacitance | 470µF |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.319" (33.50mm) |
| Family | Aluminum Capacitors |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Categories | Capacitors ->Aluminum Electrolytic Capacitors |
| Packaging | Tape & Box (TB) |
| Tolerance | ±20% |
| Lead Spacing | 0.295" (7.50mm) |
| Standard Package | 200 |
| Packaging | Tape & Box (TB) |
| Series | YXF |
| Applications | General Purpose |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Polarization | Polar |
| Categories | Capacitors ->Aluminum Electrolytic Capacitors |
| Packaging | Tape & Box (TB) |
