| DPIULC6-6DJL | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

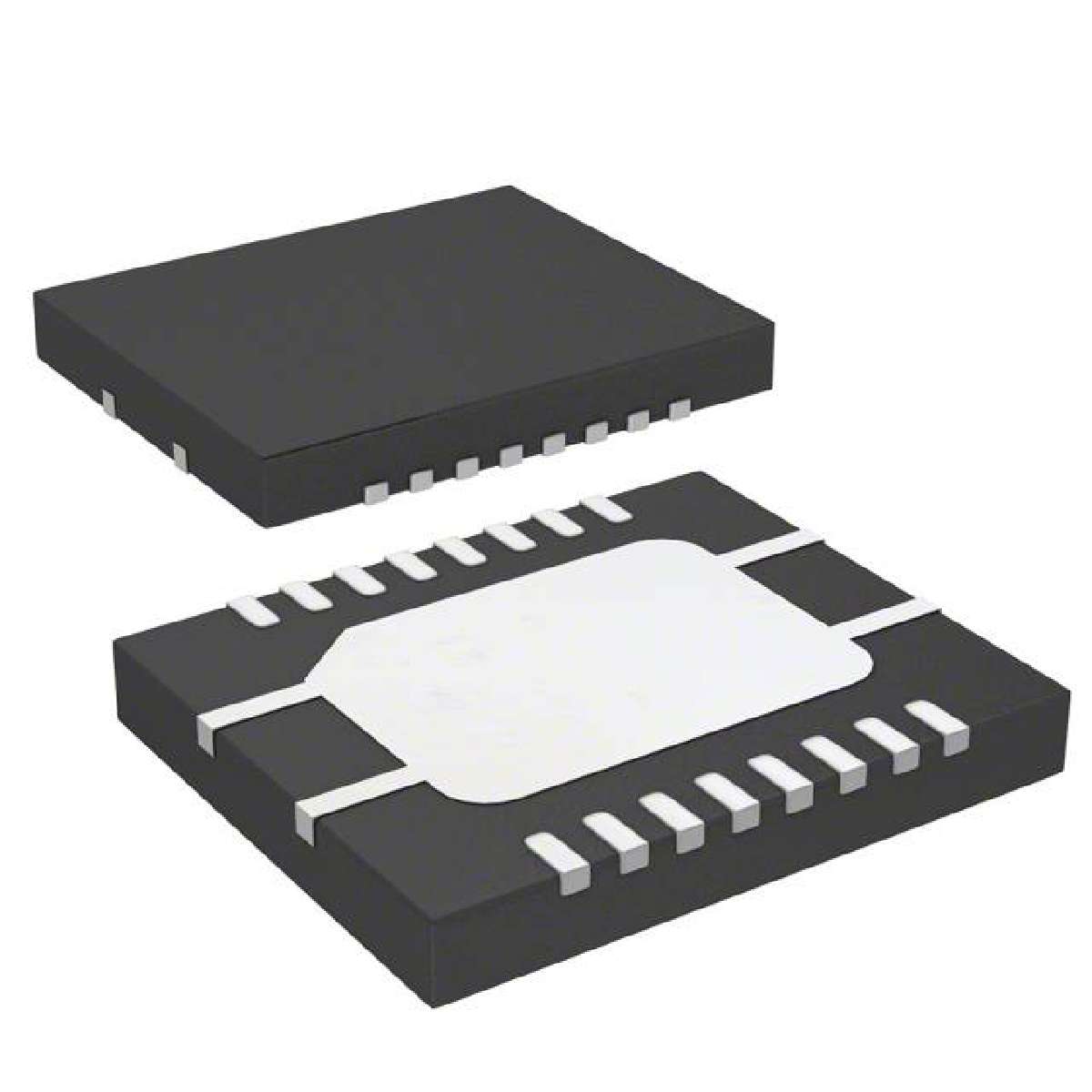

DPIULC6 Series 17 V 0.05 pF ESD Protection for Internal DisplayPort - DFN-18
|
||
| 标准包装：3000 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Type | Steering (Rail to Rail) |
|---|---|
| Capacitance @ Frequency | 1.5pF @ 1MHz |
| Power Line Protection | Yes |
| Part Status | Obsolete |
| Manufacturer | STMicroelectronics |
| Current - Peak Pulse (10/1000µs) | 5A (8/20µs) |
| Series | DPI |
| Applications | General Purpose |
| Voltage - Reverse Standoff (Typ) | 3V |
| Packaging | Cut Tape (CT) |
| Package / Case | 18-VFDFN Exposed Pad |
| Supplier Device Package | 18-DFN (5x6) |
| Voltage - Clamping (Max) @ Ipp | 17V |
| Category | Circuit Protection |
| Bidirectional Channels | 4 |
| Voltage - Breakdown (Min) | 6V |
| Family | TVS - Diodes |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| ECCN | EAR99 |
