| SP2-L2-DC12V | ||
|---|---|---|
|
|
||
|
||

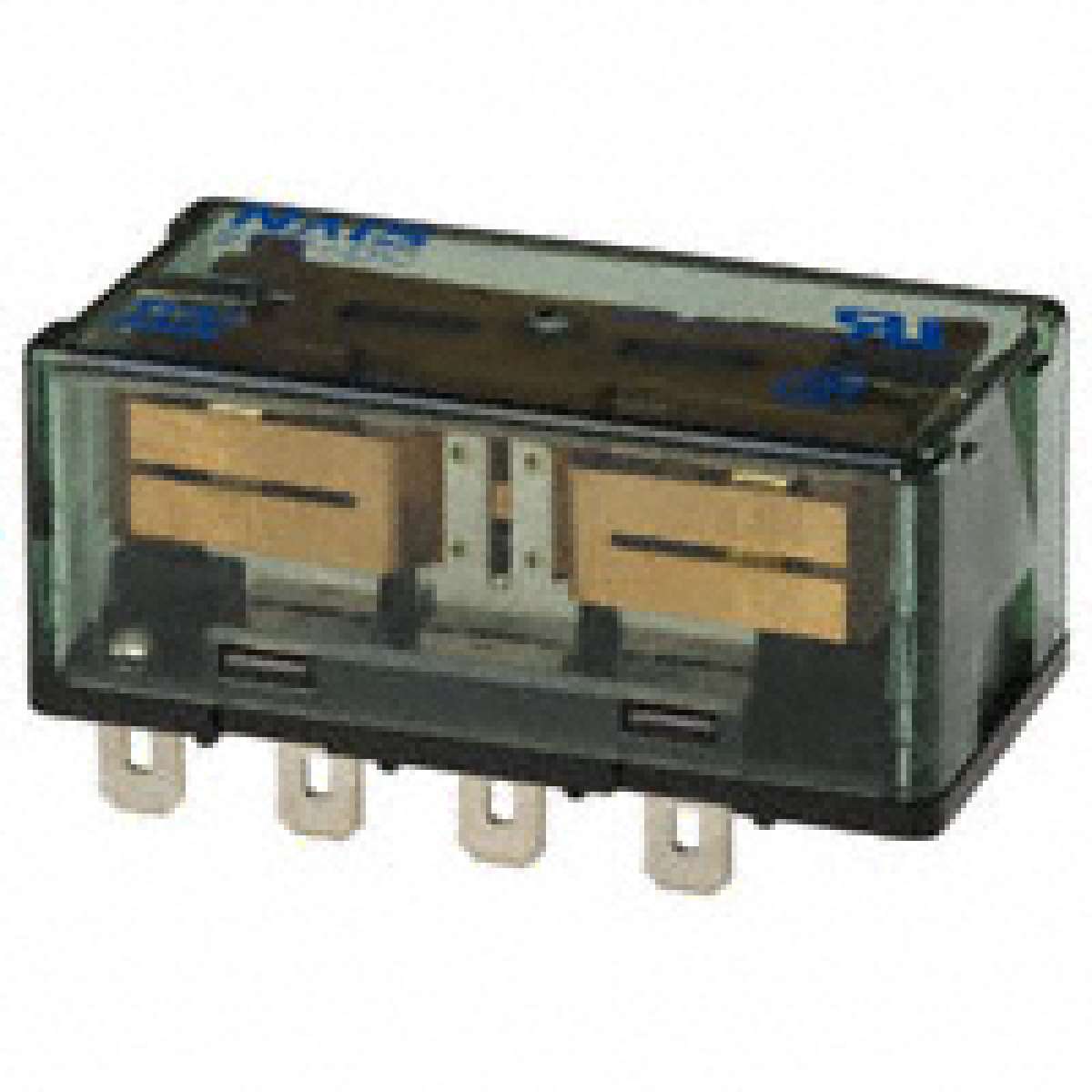

| Product description : SP Series 15 A DPDT 12 VDC Socket Mount Polarized 2 Coil Latching Power Relay | ||
| SPQ：20 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Coil Type: | Dual Coil Latching |
|---|---|
| Coil Current: | 25 mA |
| Contact Rating: | 15 A |
| Contact Form: | DPDT (2 Form C) |
| Contact Material: | Silver Tin Oxide (AgSnO) |
| Mounting Style: | Socket |
| Length: | 50 mm |
| Manufacturer: | Panasonic |
| Factory Pack Quantity: | 20 |
| RoHS: | Details |
| Product Category: | General Purpose Relays |
| Coil Termination: | Quick Connect Terminal |
| Type: | Polarized |
| Product: | Power Relays |
| Width: | 25.6 mm |
| Packaging: | Bulk |
| Coil Resistance: | 480 Ohms |
| Height: | 20.5 mm |
| Coil Voltage: | 12 VDC |
| Contact Termination: | Quick Connect Terminal |
| Switching Voltage: | 250 VAC, 30 VDC |
| Brand: | Panasonic Industrial Devices |
| Power Consumption: | 300 mW |
| Maximum Switching Current: | 15 A |
| Contact Current Rating: | 15 A |
| ECCN | EAR99 |
