| EEE-0JA101SP | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

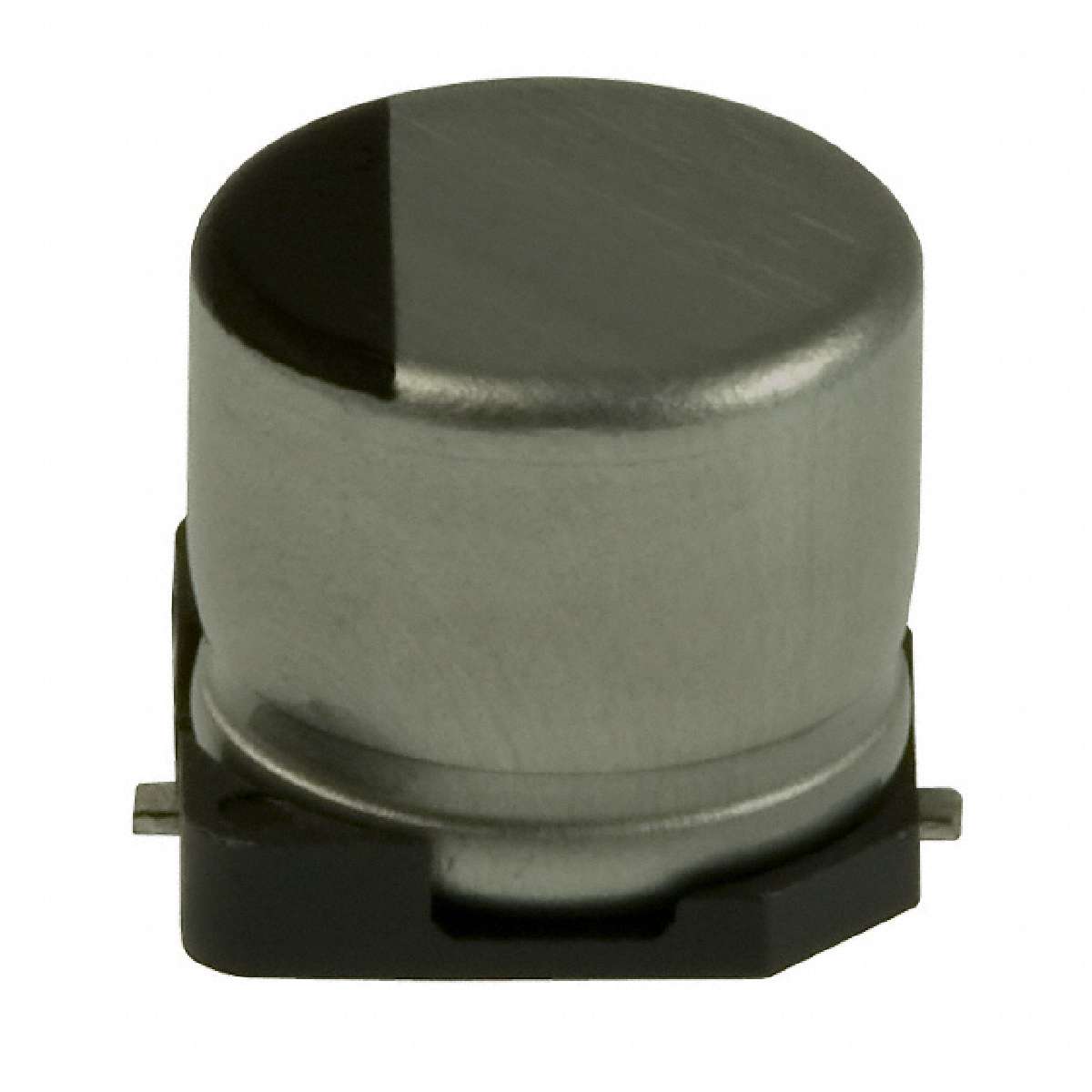

EEE-S Series 6.3 V 100 uF Ø 6.3 x 5.4 mm 85 °C SMT V-Chip AluminumElectrolytic
|
||
| 标准包装：1000 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Package / Case | Radial, Can - SMD |
|---|---|
| Voltage Rating | 6.3V |
| Polarization | Polar |
| Part Status | Active |
| Category | Capacitors |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Series | Automotive, AEC-Q200, S |
| Applications | General Purpose |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Packaging | Cut Tape (CT) |
| Tolerance | ±20% |
| Capacitance | 100µF |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Ripple Current | 71mA @ 120Hz |
| Manufacturer | Panasonic Electronic Components |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Family | Aluminum Capacitors |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| ECCN | EAR99 |
