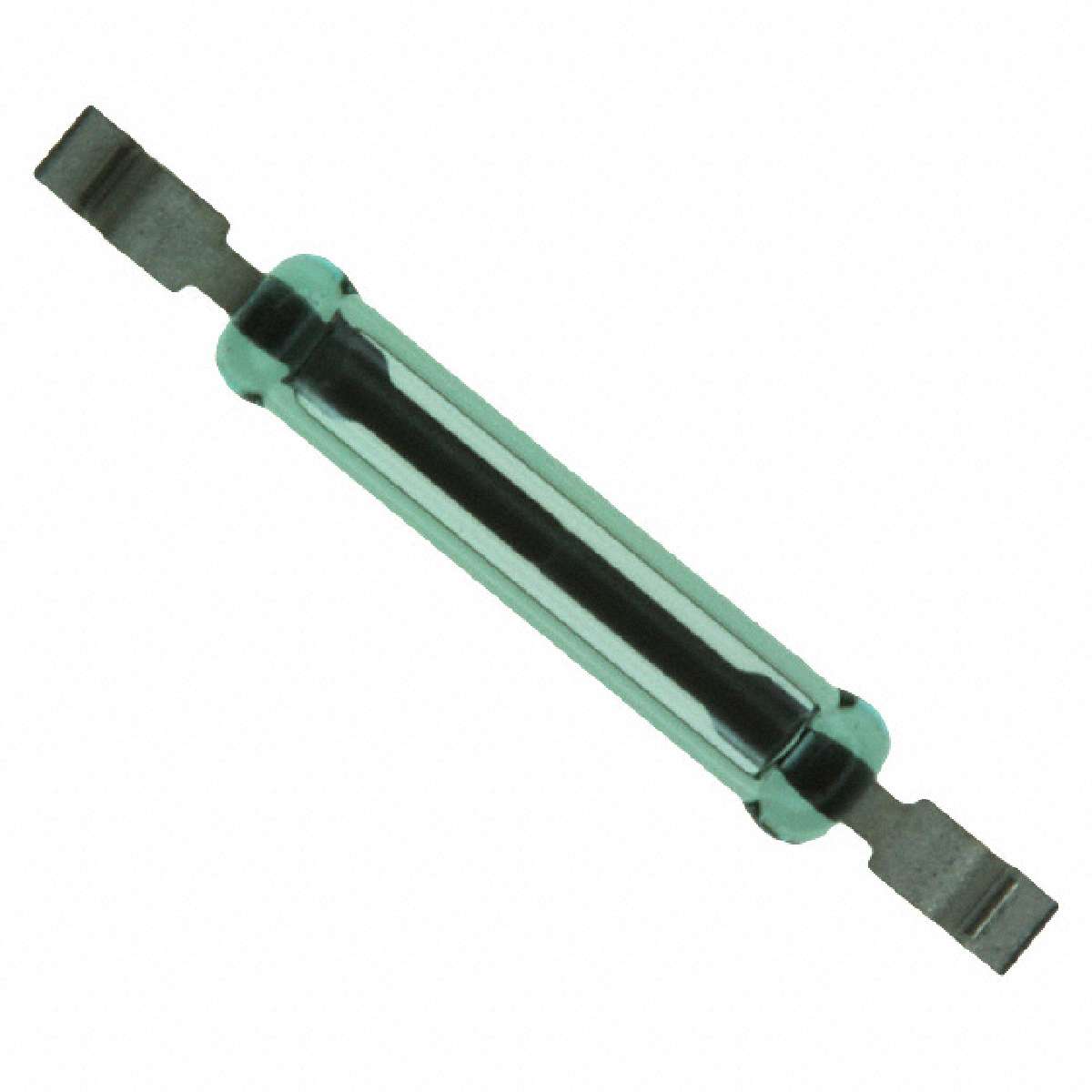

| MK23-35-B-2 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
Reed switch; Range: 10÷15AT; Pswitch: 20W; Contacts: SPST-NO; 1A
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Height Above Board | 0.077" (1.95mm) |
|---|---|
| Circuit | SPST-NO |
| Current - Switching | 1A (AC/DC) |
| Operate Range | 10 ~ 15AT |
| Operate Time | 0.5ms |
| Size - Body | 0.087" Dia x 0.413" L (2.20mm x 10.50mm) |
| Manufacturer | Standex-Meder Electronics |
| Power - Rated | 15W |
| Series | MK23 |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 130°C |
| Packaging | Digi-Reel® |
| Voltage - Switching AC | 200V |
| Type | Glass Body |
| Capacitance | 0.30pF |
| Termination Style | Gull Wing |
| Part Status | Active |
| Category | Switches |
| Release Time | 0.1ms |
| Length - Overall | 0.620" (15.75mm) |
| Family | Magnetic, Reed Switches |
| Voltage - Switching DC | 200V |
| Current - Carry | 1.25A (AC/DC) |
