| FY1113F-TR | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

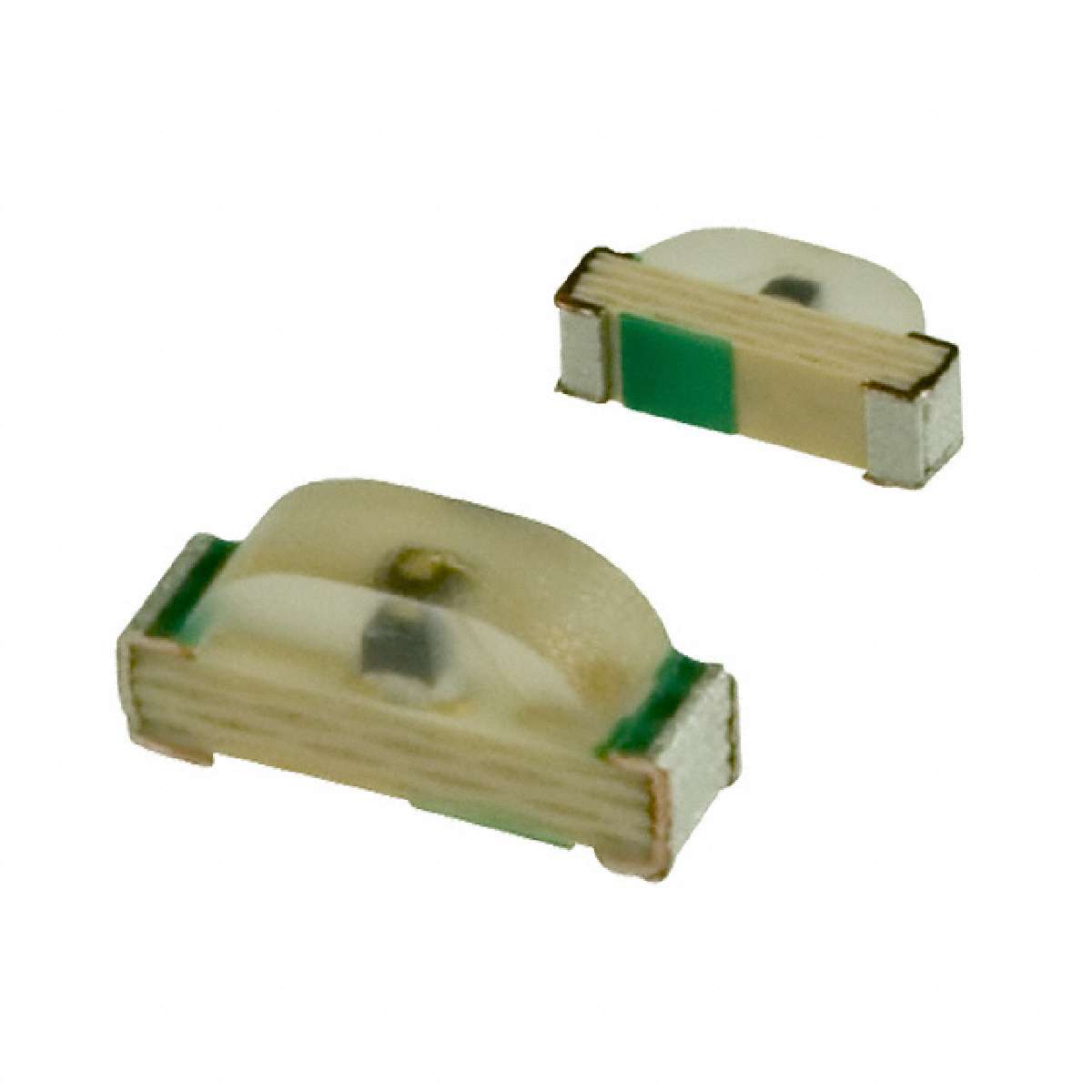

Yellow 2.1 x 1 mm 134/150° 65 mcd White Diffused 1.9 V High Brightness LED SMT
|
||
| 标准包装：4000 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Package / Case | 0805 (2012 Metric) |
|---|---|
| Color | Yellow |
| Part Status | Active |
| Manufacturer | Stanley Electric Co |
| Lens Color | White |
| Voltage - Forward (Vf) (Typ) | 1.9V |
| Series | 1113F |
| Family | LED Indication - Discrete |
| Mounting Type | Surface Mount, Right Angle |
| Millicandela Rating | 65mcd |
| ECCN | EAR99 |
| Viewing Angle | 134°, 150° |
| Size / Dimension | 2.10mm L x 1.00mm W |
| Category | Optoelectronics |
| Lens Style/Size | Rectangle with Domed Top, 1.70mm x 0.60mm |
| Wavelength - Dominant | 590nm |
| Current - Test | 20mA |
| Wavelength - Peak | 592nm |
| Height (Max) | 0.60mm |
| Lens Transparency | Diffused |
| Packaging | Cut Tape (CT) |
