08-2513-10

ACTIVE EAR99

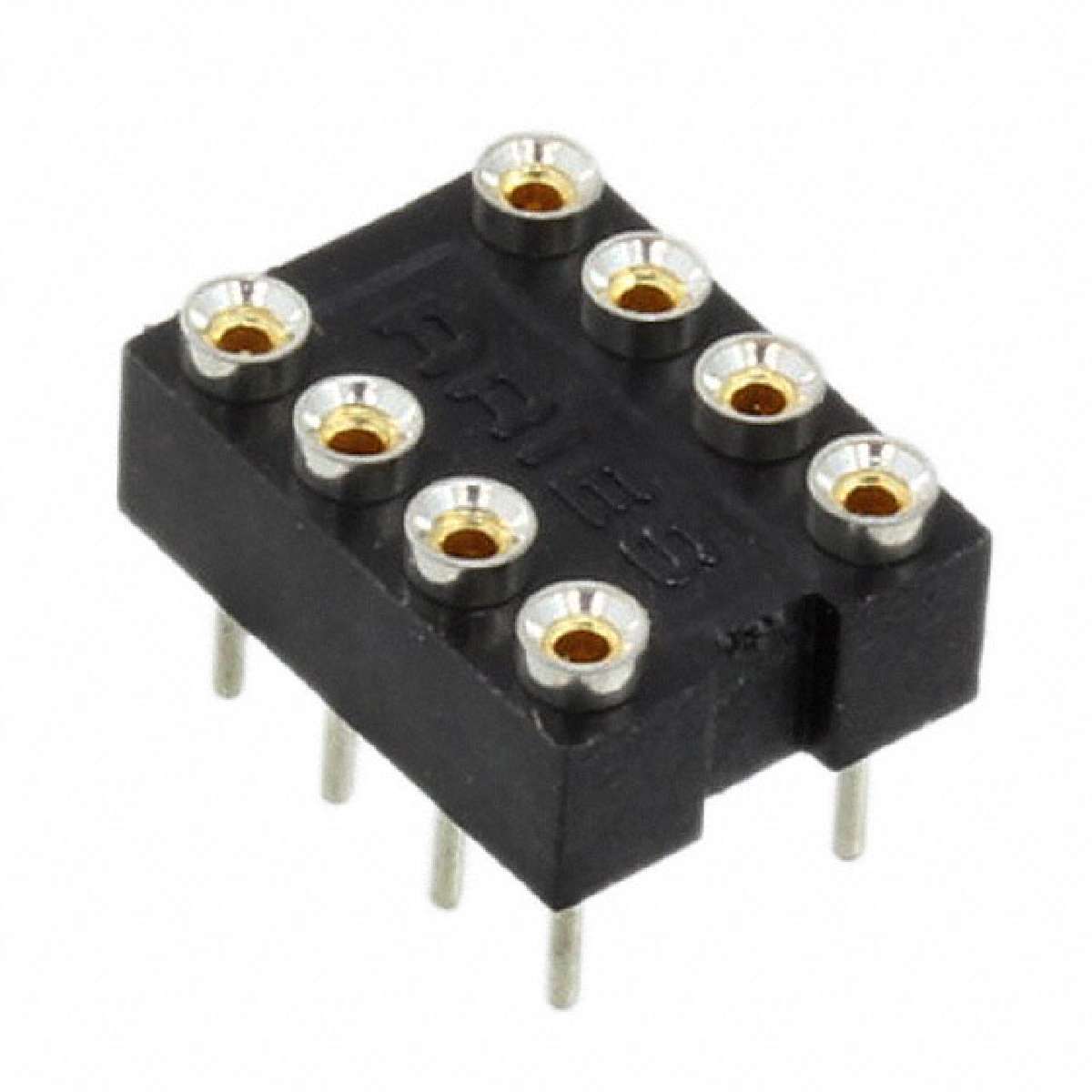

Product description : Series 513 LO-PRO®file Collet Sockets with Solder Tail Pins
SPQ：1
Datasheet : 08-2513-10.pdf

Pitch - Post	0.100" (2.54mm)
Type	DIP, 0.2" (5.08mm) Row Spacing
Number of Positions or Pins (Grid)	8 (2 x 4)
Contact Material - Post	Brass
Pitch - Mating	0.100" (2.54mm)
Material Flammability Rating	UL94 V-0
Standard Package	1
Features	Closed Frame
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10µin (0.25µm)
Family	Sockets for ICs, Transistors
ECCN	EAR99
Termination Post Length	0.125" (3.18mm)
Contact Finish Thickness - Post	200µin (5.08µm)
Housing Material	Polyamide (PA46), Nylon 4/6, Glass Filled
Contact Material - Mating	Beryllium Copper
Mounting Type	Through Hole
Termination	Solder
Contact Finish - Post	Tin
Packaging	Bulk
Online Catalog	Lo-PRO® file, 513 Series
Series	Lo-PRO®file, 513
Current Rating	3A

Datasheet： 08-2513-10.pdf
