| 0481.250H | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

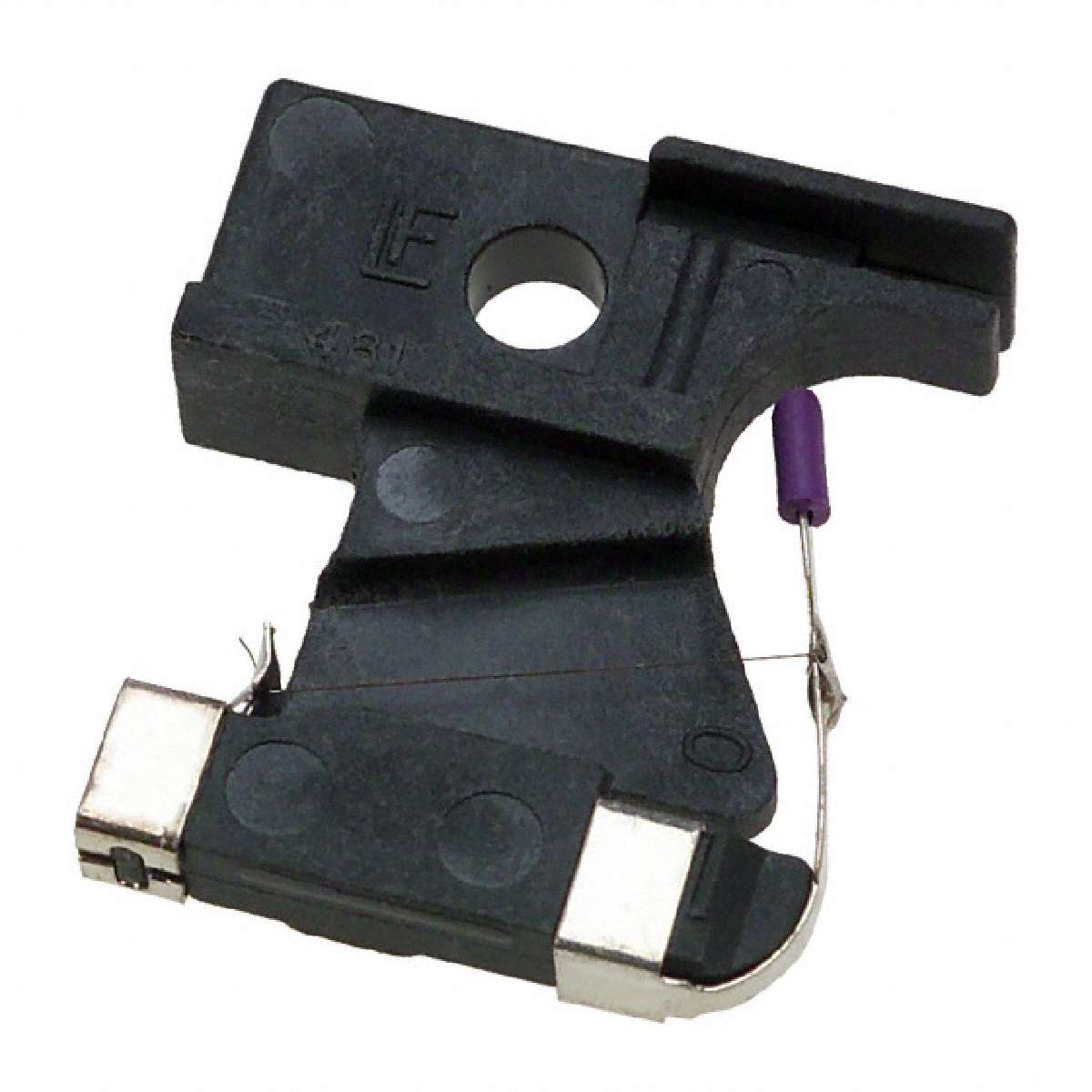

FUSE 125V ALARM FUSE W/LENS .250A
|
||
| 标准包装：100 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Package / Case | Alarm Indicator |
|---|---|
| Size / Dimension | 0.665" L x 0.228" W x 0.772" H (16.90mm x 5.80mm x 19.60mm) |
| DC Cold Resistance | 4.2 Ohm |
| Series | 481 |
| Mounting Type | Holder |
| Operating Temperature | -55°C ~ 90°C |
| ECCN | EAR99 |
| Color | Violet |
| Fuse Type | Normal Blow |
| Voltage - Rated | 125VAC, 125VDC |
| Family | Electrical, Specialty Fuses |
| Melting I²t | 0.0356 |
| Current | 250mA |
