04-0513-10

ACTIVE EAR99

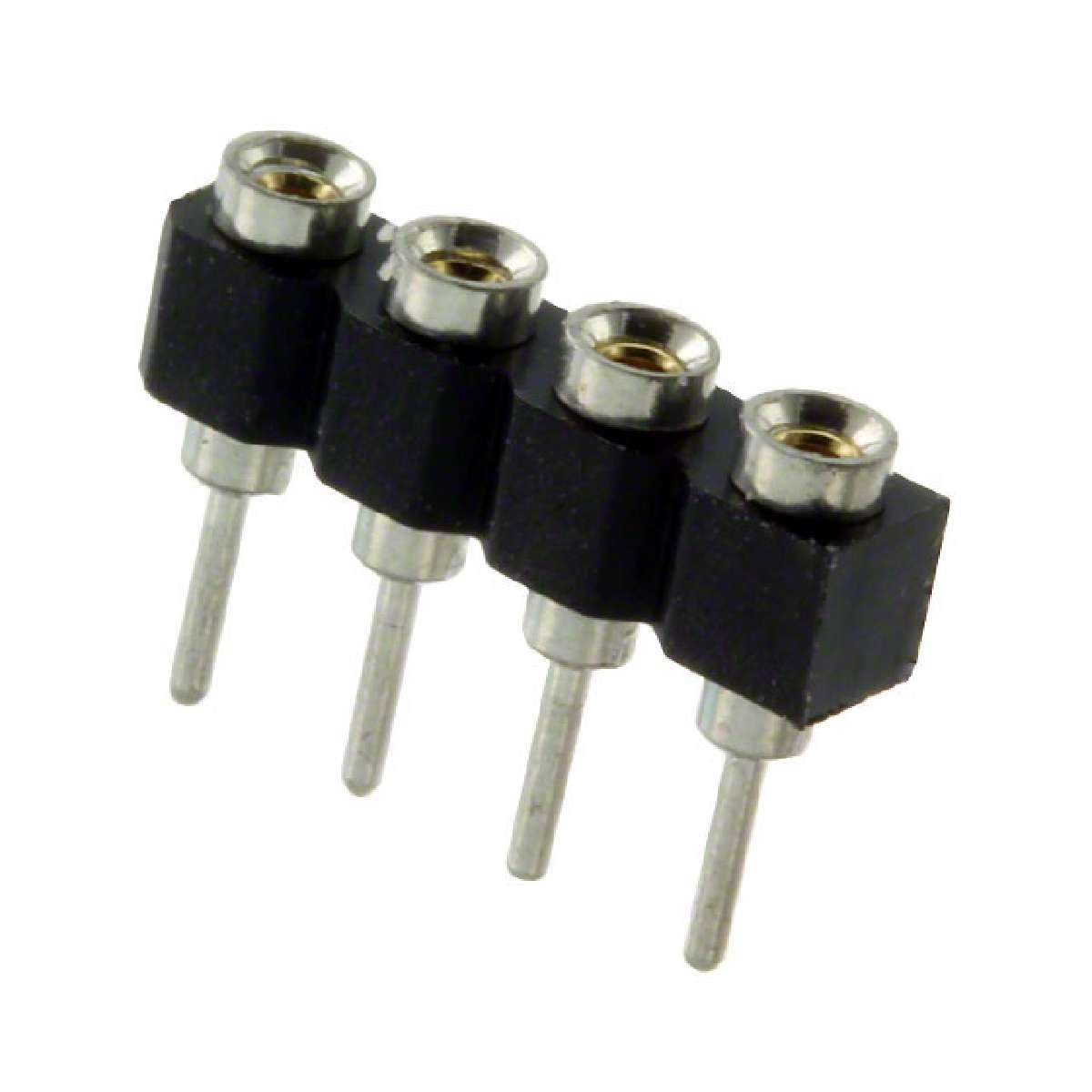

Product description : 513 Pin-Line Series 4 Position Solder Tail Collet Socket Strip
SPQ：1
Datasheet : 04-0513-10.pdf

Termination	Solder
Termination Post Length	0.125" (3.18mm)
Standard Package	1
Packaging	Bulk
Number of Positions or Pins (Grid)	4 (1 x 4)
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10碌in (0.25碌m)
Series	0513
Family	Sockets for ICs, Transistors
Material Flammability Rating	UL94 V-0
ECCN	EAR99
Pitch - Post	0.100" (2.54mm)
Type	SIP
Contact Finish - Post	Tin
Contact Finish Thickness - Post	200碌in (5.08碌m)
Housing Material	Polyamide (PA46), Nylon 4/6, Glass Filled
Contact Material - Post	Brass
Contact Material - Mating	Beryllium Copper
Pitch - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Current Rating	3A

Datasheet： 04-0513-10.pdf

You can comment after logging in.

库存信息0到货提醒

暂无任何库存信息但可询价询价

Please inform us of the error for improving our site and products.

Stock code :	1146907
Mfg name :	Aries Electronics, Inc.
MPN :	04-0513-10
Product description :	513 Pin-Line Series 4 Position Solder Tail Collet Socket Strip
