| EEU-FC1V331B | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

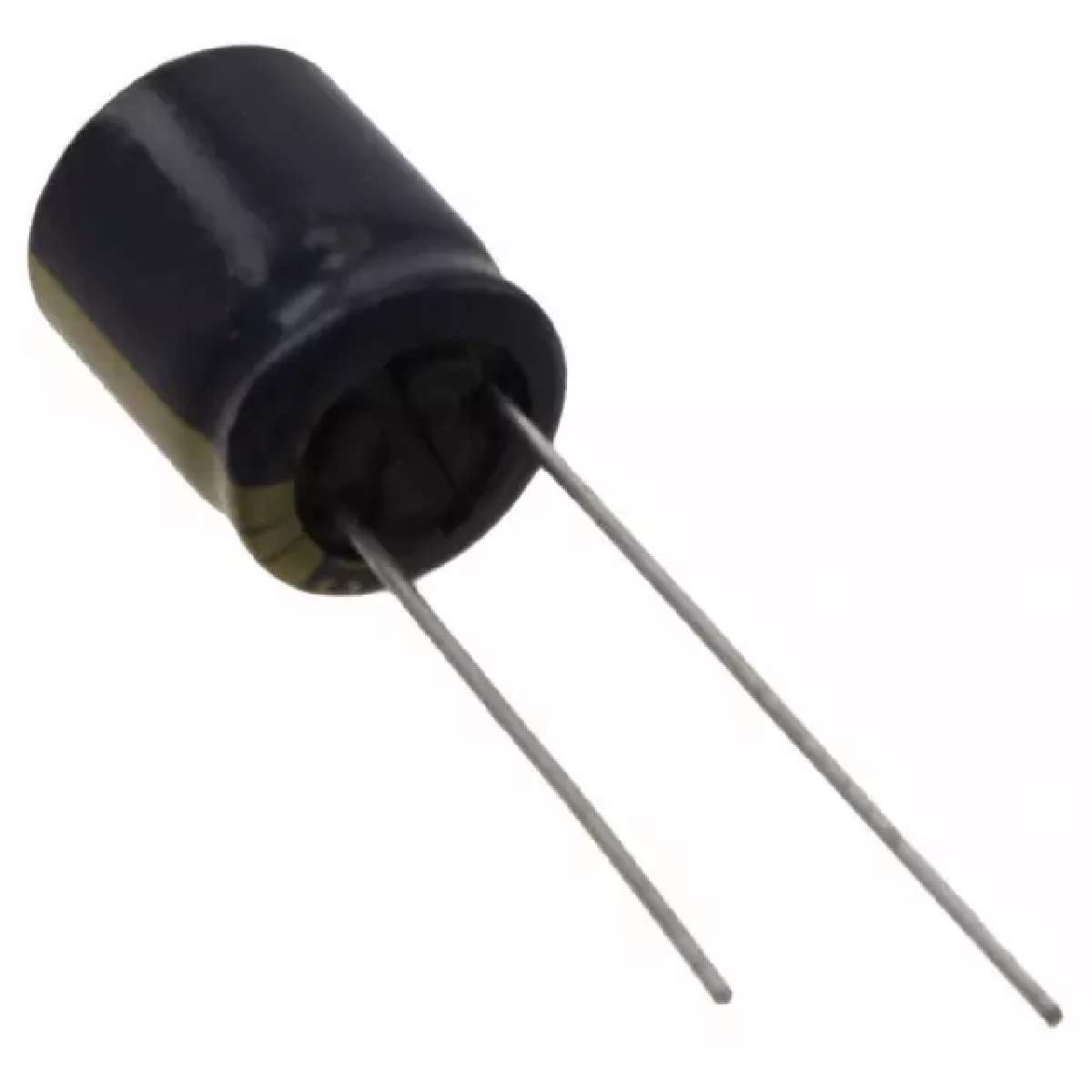

EEU-FC Series 35 V 330 uF Ø 10 x 16 mm LS=5 mm 105 °C Low ESR Electrolytic
|
||
| 标准包装：500 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Lead Spacing | 0.197" (5.00mm) |
|---|---|
| Impedance | 68 mOhm |
| Voltage Rating | 35V |
| Polarization | Polar |
| Part Status | Active |
| Category | Capacitors |
| Height - Seated (Max) | 0.630" (16.00mm) |
| Family | Aluminum Capacitors |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 105°C |
| ECCN | EAR99 |
| Package / Case | Radial, Can |
| Tolerance | ±20% |
| Capacitance | 330µF |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Ripple Current | 682.5mA @ 120Hz |
| Manufacturer | Panasonic Electronic Components |
| Series | Automotive, AEC-Q200, FC |
| Applications | Automotive |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Packaging | Tape & Box (TB) |
登录之后就可发表评论
库存信息3到货提醒
供应商编码:SP1027
线下原厂及原厂授权代理商库存，接单后需要再次确认价格和数量
$0.44888
￥3.72824
查看价格阶梯
| 500+ | $0.44888 |
|---|---|
| 1000+ | $0.42362 |
| 2500+ | $0.40641 |
| 5000+ | $0.40021 |
| 7500+ | $0.38564 |
| 库存数量 | 4000 | 库存更新于 2024-12-06 |
|---|---|---|
| 订货周期 | 0Weeks | |
| Supplier SPQ/MOQ | 500/500 | |
| 库存地 | -- | |
| 生产批次 | 2312 |
