| BRPY1211F-TR | ||
|---|---|---|
|
|
||
|
||

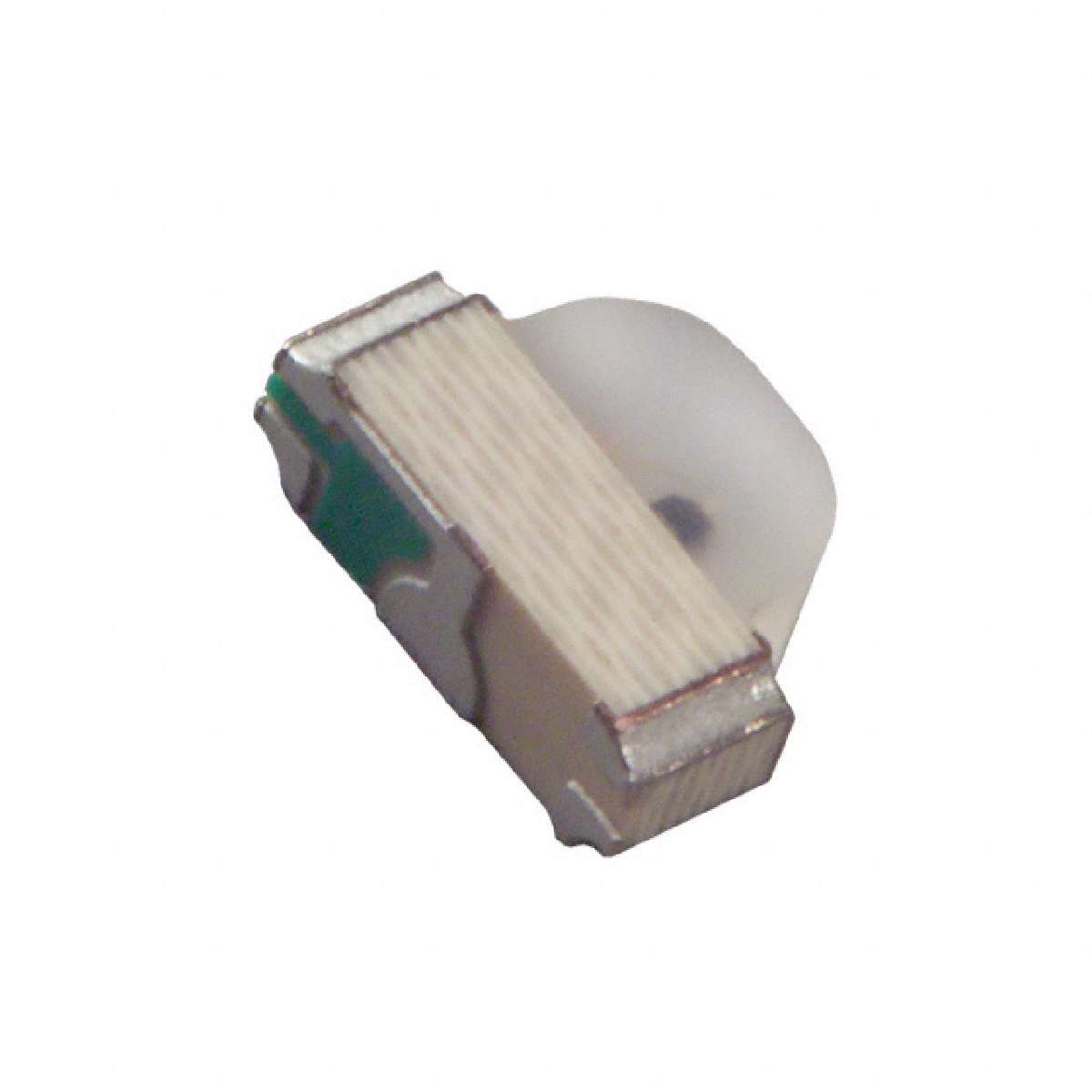

| Product description : Bi-Color 3 x 2 mm (1108) Yellow - Greenish (872 nm) & Red Right Anlge SMT LED | ||
| SPQ：3000 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Package / Case | 2-SMD, No Lead |
|---|---|
| Supplier Device Package | 2-SMD |
| Size / Dimension | 3.00mm L x 2.00mm W |
| Category | Optoelectronics |
| Lens Style/Size | Rectangle with Domed Top, 2.00mm x 1.00mm |
| Wavelength - Dominant | 572nm Green, 647nm Red |
| Current - Test | 20mA Green, 20mA Red |
| Wavelength - Peak | 570nm Green, 660nm Red |
| Height (Max) | 1.15mm |
| Lens Transparency | Diffused |
| Packaging | Cut Tape (CT) |
| Viewing Angle | 148°, 140° Green, 149°, 143° Red |
| Color | Green, Red |
| Part Status | Active |
| Manufacturer | Stanley Electric Co |
| Lens Color | White |
| Voltage - Forward (Vf) (Typ) | 2.1V Green, 1.7V Red |
| Series | 1211F |
| Family | LED Indication - Discrete |
| Mounting Type | Surface Mount, Right Angle |
| Millicandela Rating | 8.8mcd Green, 17.6mcd Red |
| ECCN | EAR99 |
