| V8511X | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

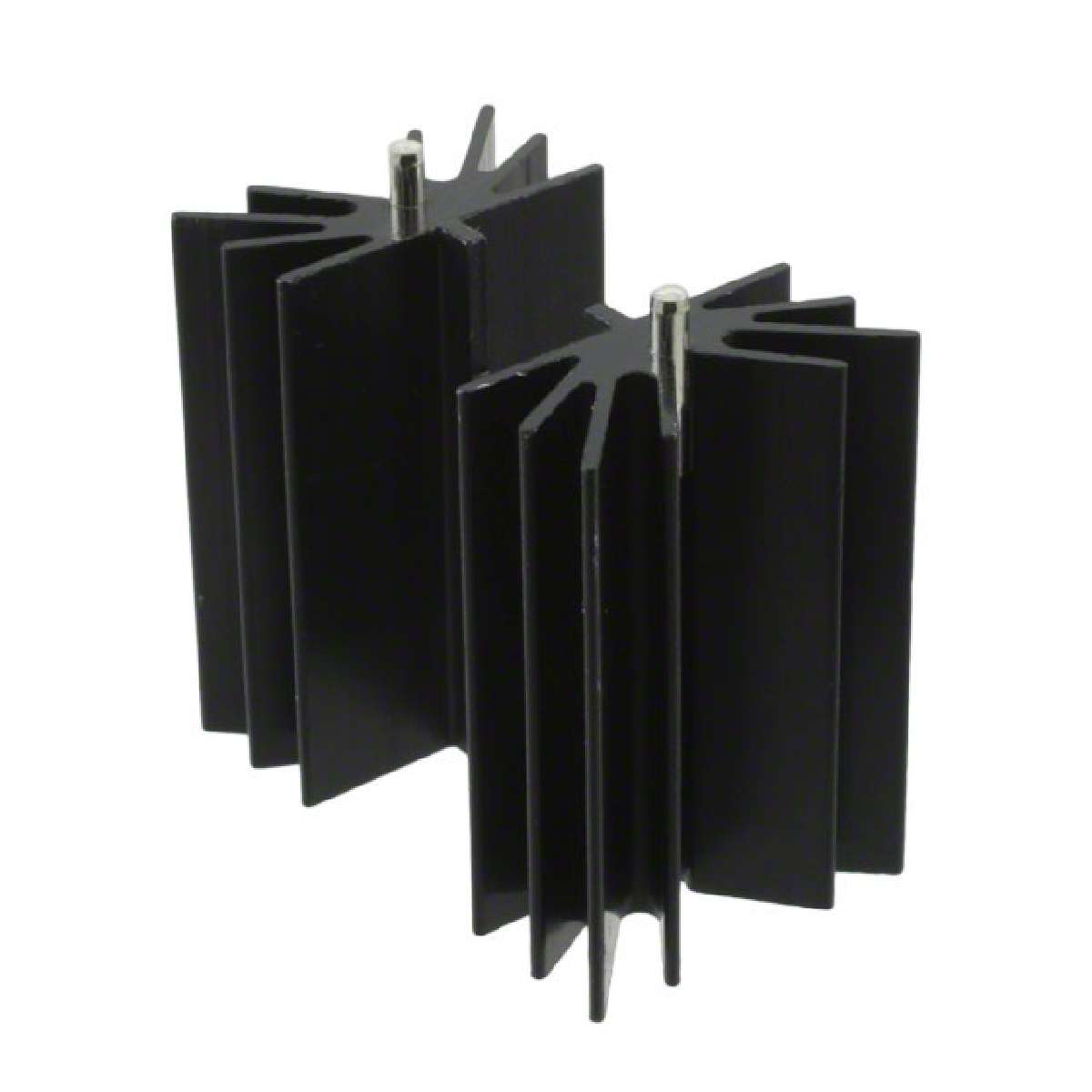

Aluminum Black Anodized 38.1 x 41.6mm Bolt On/PC Pin Board Level Heatsink
|
||
| 标准包装：42 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Package Cooled | SOT-32, TO-220, TOP-3 |
|---|---|
| Type | Board Level, Vertical |
| Part Status | Active |
| Category | Fans, Thermal Management |
| Material Finish | Black Anodized |
| Family | Thermal - Heat Sinks |
| Width | 1.638" (41.60mm) |
| ECCN | EAR99 |
| Attachment Method | Bolt On and PC Pin |
| Material | Aluminum |
| Shape | Rectangular, Fins |
| Manufacturer | Assmann WSW Components |
| Length | 1.500" (38.10mm) |
| Height Off Base (Height of Fin) | 0.984" (25.00mm) |
| Thermal Resistance @ Natural | 5°C/W |
