| US3881LUA-AAA-000-BU | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

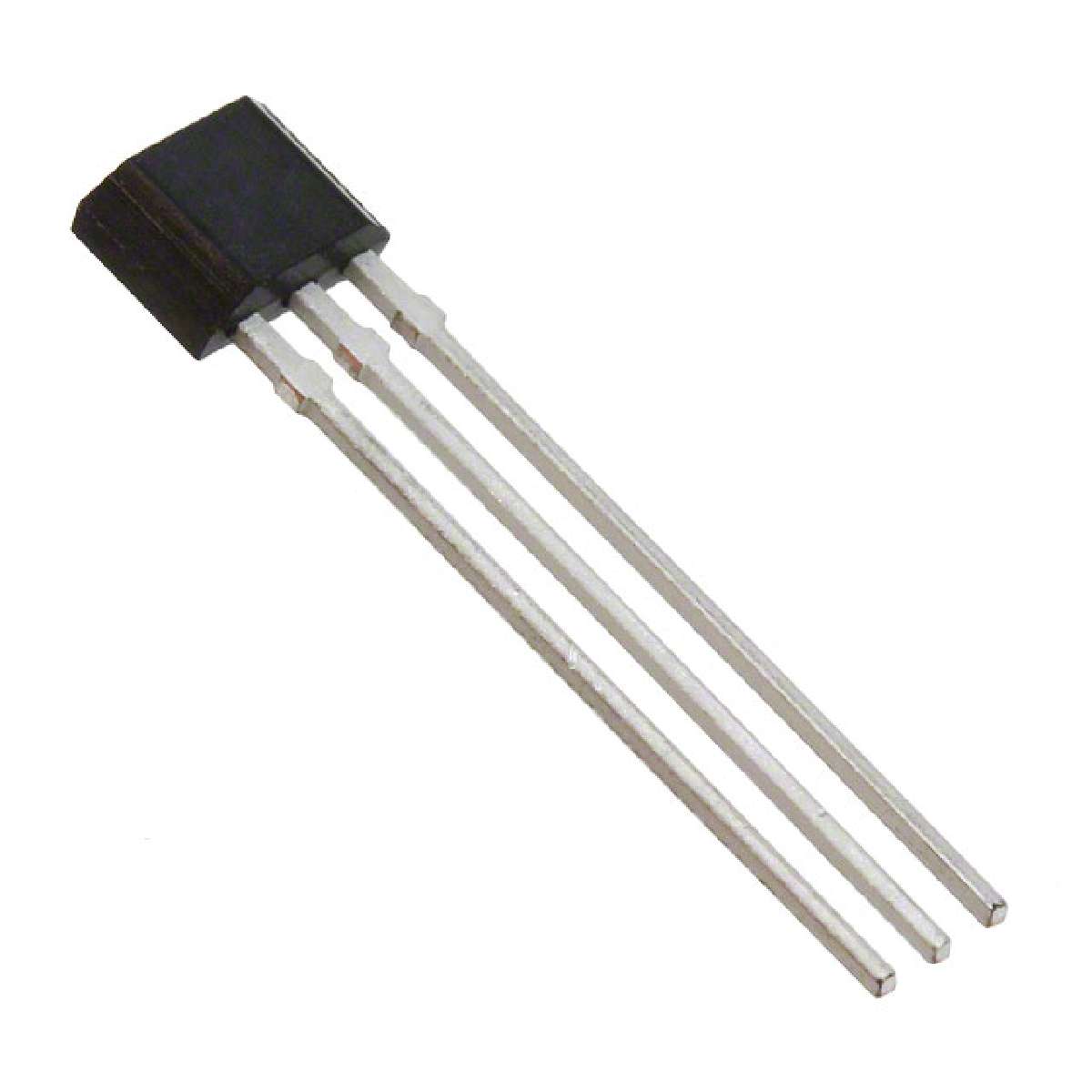

US3881 2.2 - 18 V 50 mA Low Voltage & High Sensitivity Hall Latch BULK - TO-92-3
|
||
| 标准包装：1000 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Output Voltage: | 20 V |
|---|---|
| Release Point Min/Max (Brp): | - 9 mT to - 1 mT |
| Manufacturer: | Melexis |
| Maximum Output Current: | 50 mA |
| Series: | US3881 |
| Operating Point Min/Max: | 1 mT to 9 mT |
| Brand: | Melexis |
| RoHS: | Details |
| Package / Case: | TO-92-3 |
| Operating Supply Current: | 2.5 mA |
| Type: | Low-Voltage, High Sensitivity |
| Maximum Operating Temperature: | + 150 C |
| Product: | Hall Effect Latches |
| Packaging: | Bulk |
| Output Type: | Open Drain |
| Operating Supply Voltage: | 18 V |
| Minimum Operating Temperature: | - 40 C |
| Factory Pack Quantity: | 1000 |
| Supply Voltage - Min: | 2.2 V |
| Termination Style: | Through Hole |
| Product Category: | Board Mount Hall Effect / Magnetic Sensors |
| Supply Voltage - Max: | 18 V |
| Mounting Style: | Through Hole |
| ECCN | EAR99 |
