| RP15-4812SF | ||
|---|---|---|
|
|
||
|
||

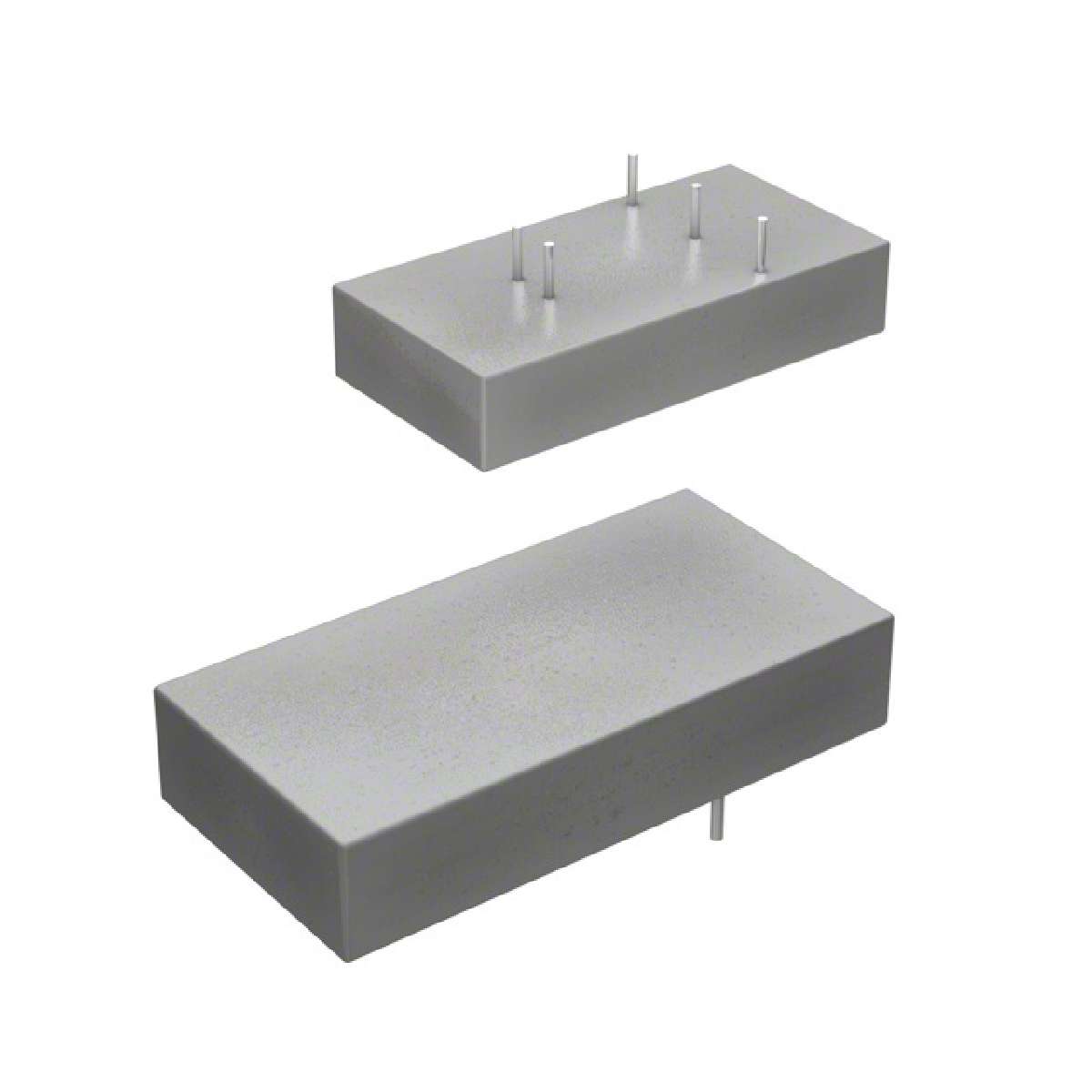

| Product description : RP15-F Series 15 W Single Output 12 V 2x1 DC/DC Converter | ||
| SPQ：9 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Voltage - Isolation | 1.6kV (1600V) |
|---|---|
| Package / Case | 6-DIP Module (4 Leads) |
| Current - Output (Max) | 1.25A |
| Features | SCP |
| Part Status | Active |
| Efficiency | 87% |
| Voltage - Input (Max) | 75V |
| Series | POWERLINE RP15-F |
| Voltage - Input (Min) | 36V |
| Mounting Type | Through Hole |
| Power (Watts) - Max | 15W |
| ECCN | EAR99 |
| Number of Outputs | 1 |
| Type | Isolated Module |
| Power (Watts) - Manufacture Series | 15W |
| Size / Dimension | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) |
| Category | Power Supplies - Board Mount |
| Manufacturer | Recom Power |
| Voltage - Output 1 | 12V |
| Family | DC DC Converters |
| Applications | ITE (Commercial) |
| Operating Temperature | -40°C ~ 85°C |
| Packaging | Tube |
