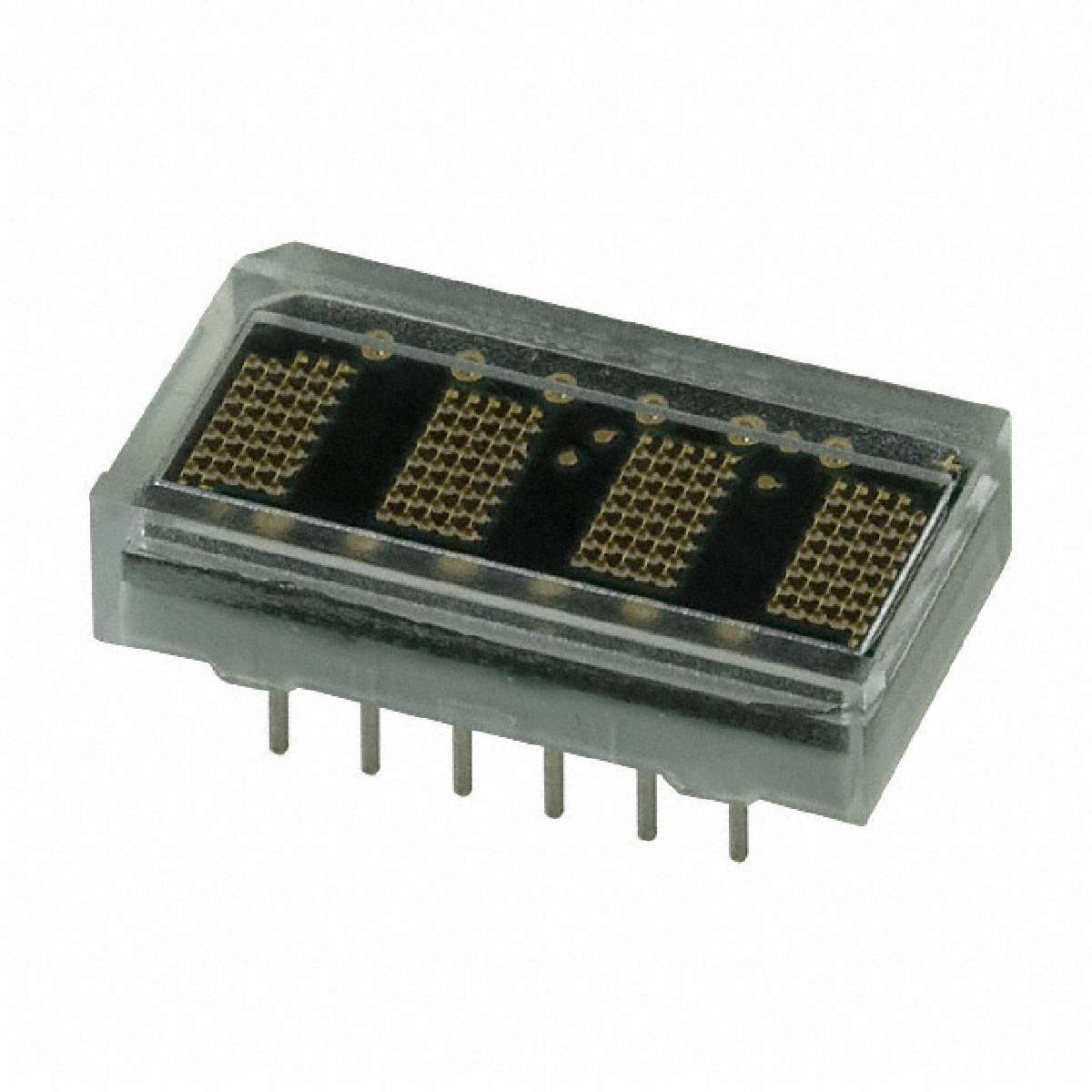

| HCMS-2965 | ||
|---|---|---|
|
|
||
|
||
| Product description : Display: LED; alphanumeric; 4.81mm; 0.2"; No.char: 1; red | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Viewing Area - W x H: | 18.62 mm x 4.57 mm |
|---|---|
| Display Type: | 5 x 7 Dot Matrix |
| If - Forward Current: | 10 mA |
| Luminous Intensity: | 230 ucd |
| Minimum Operating Temperature: | - 40 C |
| Brand: | Broadcom / Avago |
| Power Consumption: | 1.2 W |
| Number of Digits: | 4 |
| Configuration: | Anode Columns, Cathode Rows |
| Wavelength: | 637 nm |
| Maximum Operating Temperature: | + 85 C |
| Character Size: | 2.54 mm x 4.57 mm |
| Packaging: | Tube |
| Manufacturer: | Broadcom Limited |
| Operating Temperature Range: | - 40 C to + 85 C |
| Factory Pack Quantity: | 20 |
| RoHS: | Details |
| Product Category: | LED Displays & Accessories |
| Illumination Color: | Red |
| Mounting Style: | Through Hole |
| Vf - Forward Voltage: | 5 V |
| ECCN | ECL99 |
