| FXUB63.07.0150C | ||
|---|---|---|
|
|
||
|
||

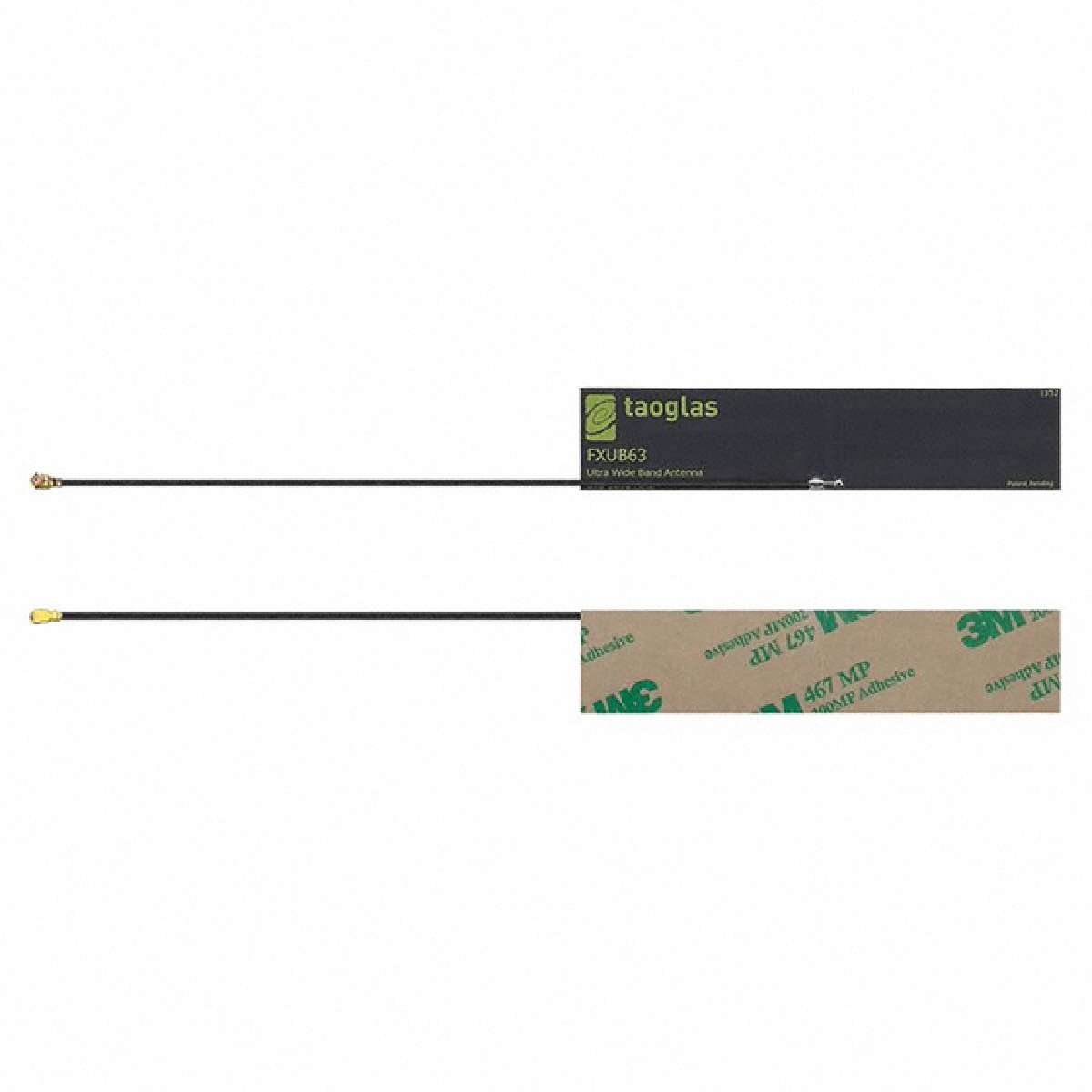

| Product description : RF ANT 850MHZ/1.575GHZ FLT PATCH | ||
| SPQ：1 | ||
| Datasheet : |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Termination | Cable (150mm) - U.FL |
|---|---|
| Power - Max | 5W |
| Number of Bands | 6 |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 850MHz, 1.575GHz, 1.8GHz, 2.1GHz, 2.4GHz, 2.6GHz |
| Manufacturer | Taoglas Limited |
| Mounting Type | Adhesive |
| Height (Max) | 0.008" (0.20mm) |
| Frequency Range | 698MHz ~ 3GHz |
| VSWR | 2, 2, 1.8, 1.7, 1.7, 2.3 |
| Gain | 1dBi, 2.5dBi, 3.5dBi, 5dBi, 5dBi, 4.5dBi |
| Antenna Type | Flat Patch |
| Part Status | Active |
| Category | RF/IF and RFID |
| Family | RF Antennas |
| Applications | GPS, LTE, Wi-Fi |
| Return Loss | -10dB, -10dB, -11dB, -12dB, -12dB, -8dB |
| Packaging | Bulk |
| Datasheet： |
|---|
You can comment after logging in.
Availability3Request Stock Notification
Supplier Stock
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
| stock | 100 | Update On 2025-05-20 |
|---|---|---|
| Lead-Time | -- | |
| SPQ/MOQ | 1/1 | |
| Location | -- | |
| DateCode | 2333 |
Supplier Code:SP1038
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
$9.97032
￥82.80997
| stock | 1 | Update On 2025-02-08 |
|---|---|---|
| Lead-Time | -- | |
| Supplier SPQ/MOQ | 1/1 | |
| Location | -- | |
| DateCode | 2021/07/30 |
