| FS24-500 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

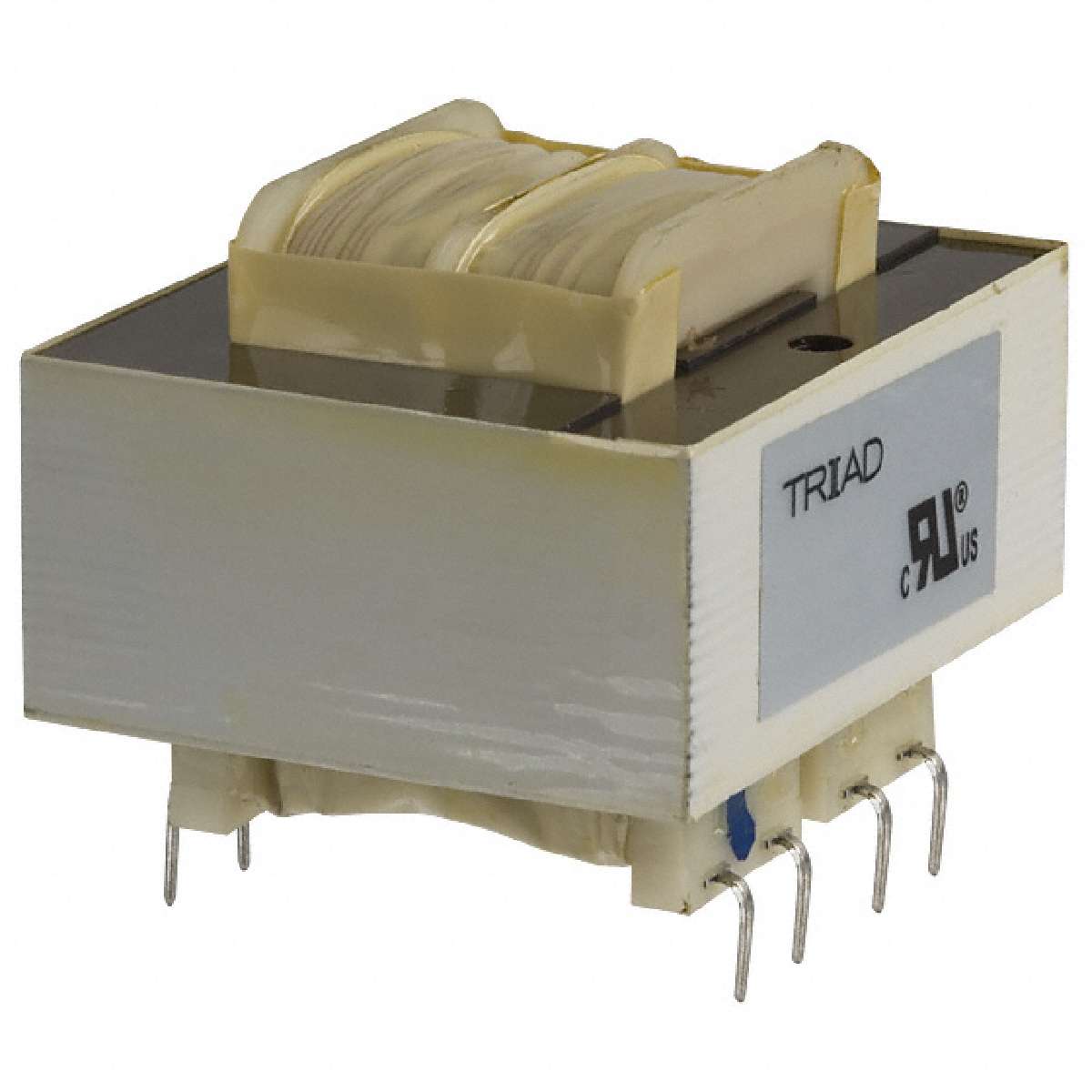

FS24 SERIES 12va PC MOUNT POWER TRANSFORMER
|
||
| 标准包装：60 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Voltage - Isolation | 2500Vrms |
|---|---|
| Voltage - Secondary (Full Load) | Parallel 12V, Series 24V |
| Type | Laminated Core |
| Center Tap | No |
| Size / Dimension | 47.63mm L x 39.67mm W |
| Voltage - Primary | 115V, 230V |
| Manufacturer | Triad Magnetics |
| Secondary Winding(s) | Dual |
| Family | Power Transformers |
| ECCN | EAR99 |
| Primary Winding(s) | Dual |
| Power - Max | 12 VA |
| Current - Output (Max) | Parallel 1A, Series 500mA |
| Termination Style | PC Pin |
| Part Status | Active |
| Category | Transformers |
| Height - Seated (Max) | 36.50mm |
| Series | Split Pack™ |
| Mounting Type | Through Hole |
| 数据手册： |
|---|
登录之后就可发表评论
Availability2Request Stock Notification
Supplier Stock
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
| stock | 1080 | Update On 2025-06-24 |
|---|---|---|
| Lead-Time | -- | |
| SPQ/MOQ | 60/60 | |
| Location | -- | |
| DateCode | 2439 |
