| AWG28-26/G/300 | ||
|---|---|---|
|
|
||
|
||

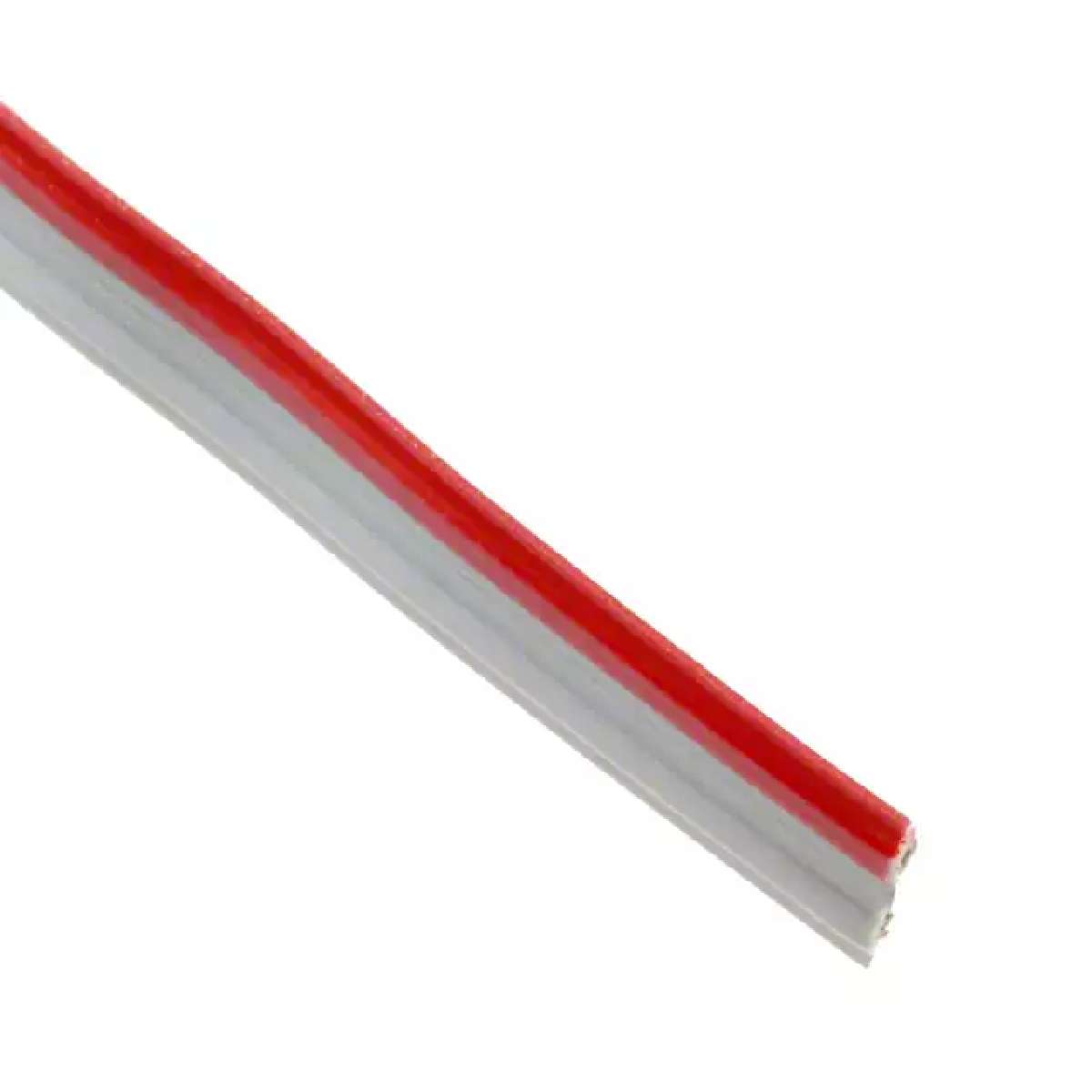

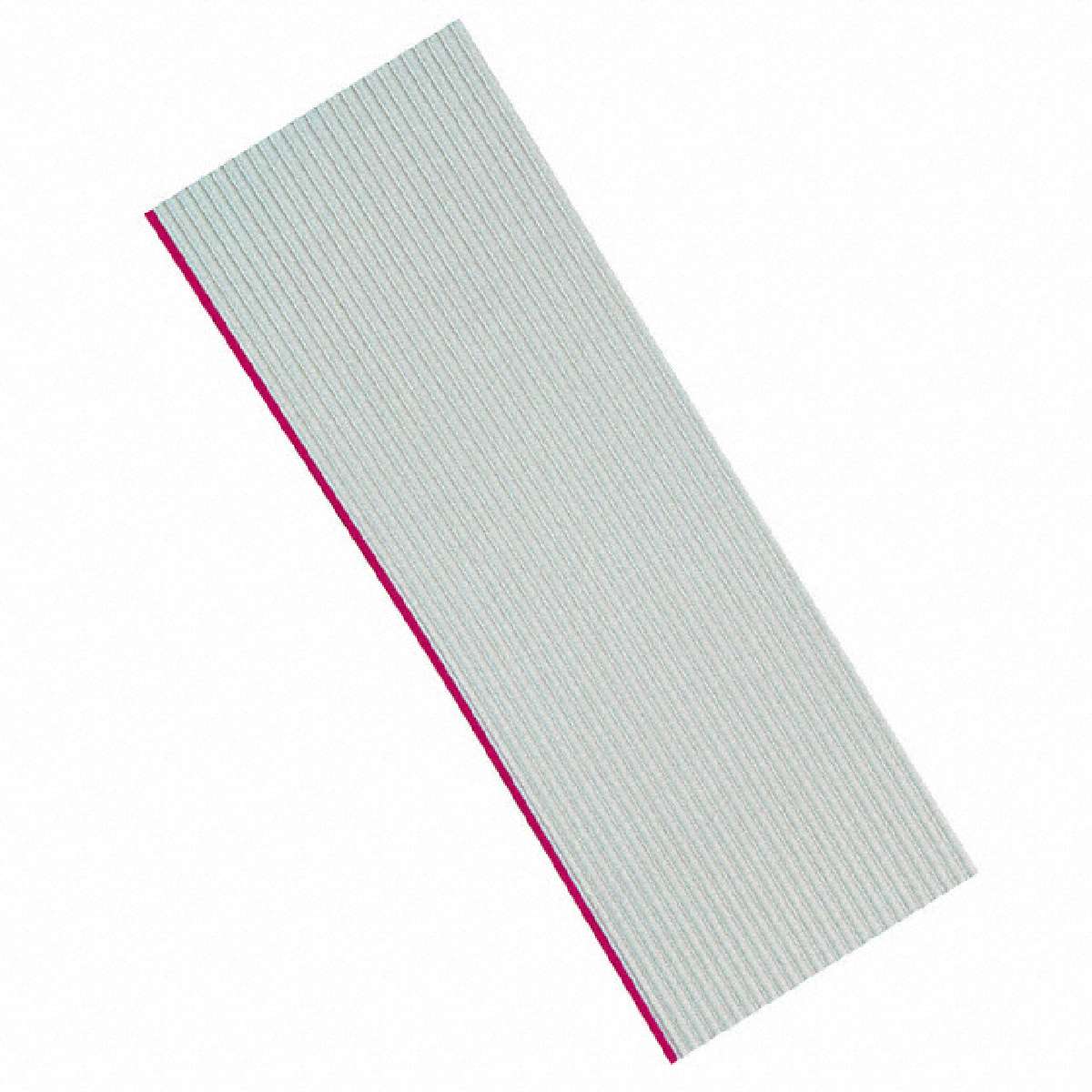

| Product description : 26 CONDUCTORS AWG28, 1.27MM PITCH, GREY 300FT | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Conductor Strand | 7 Strands / 36 AWG |
|---|---|
| Cable Type | Flat Cable |
| Ratings | UL Style 2651 |
| Ribbon Thickness | 0.035" (0.89mm) |
| First Conductor Mark | Red |
| Category | Cables, Wires |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Length | 10.0' (3.05m) |
| Family | Flat Ribbon Cables |
| Conductor Material | Copper, Tinned |
| Operating Temperature | -10°C ~ 105°C |
| ECCN | EAR99 |
| Ribbon Width | 1.300" (33.02mm) |
| Jacket Color | Gray |
| Number of Conductors | 26 |
| Part Status | Active |
| Manufacturer | Assmann WSW Components |
| Insulation Resistance | 100 MOhms |
| Voltage | 300V |
| Series | AWG |
| Wire Gauge | 28 AWG |
| Shielding | Unshielded |
| Pitch | 0.050" (1.27mm) |
