| 901-19-2-23-2-B-0 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

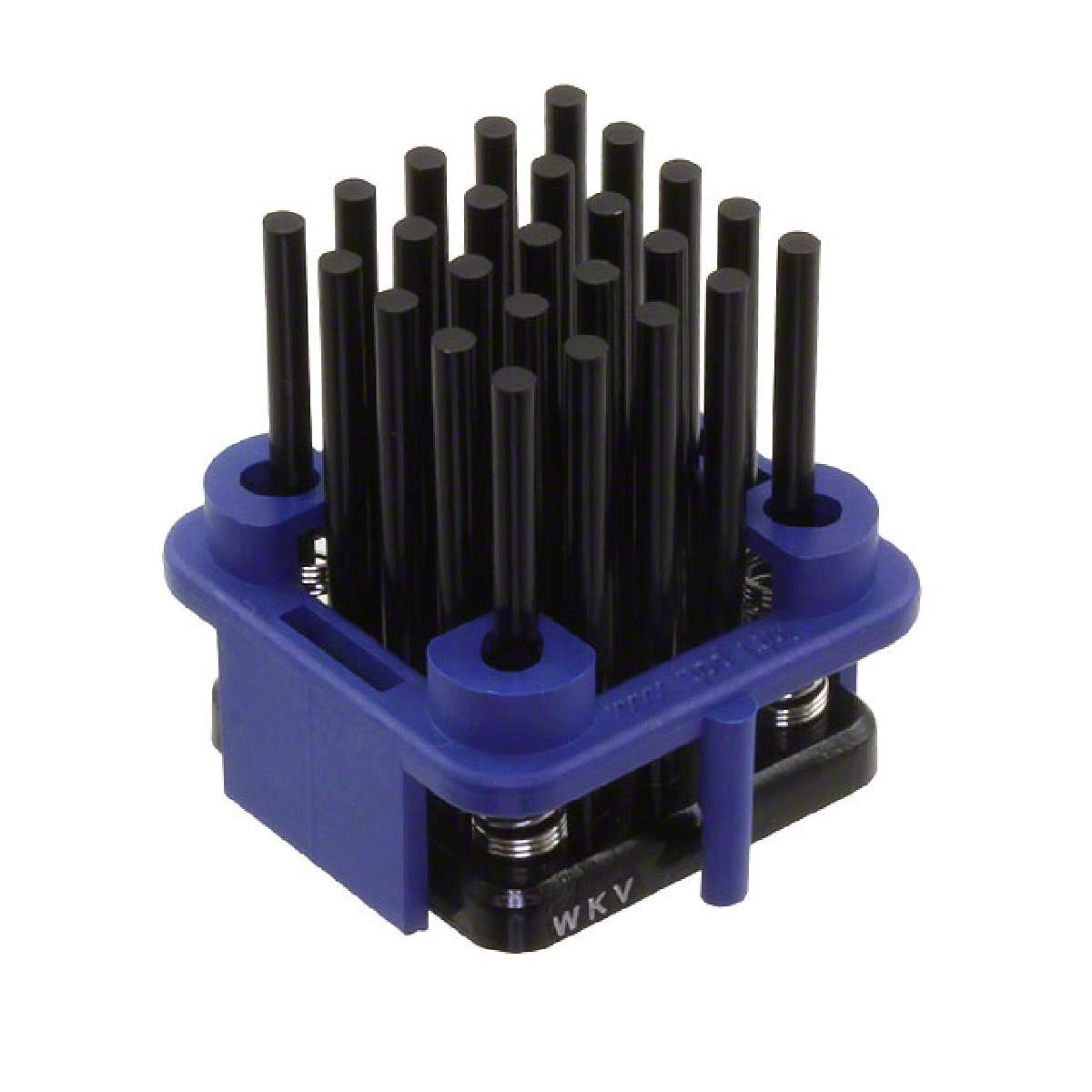

901 Series Al 6030 Black Anodize 23 mm (H) 19 mm (Chip) Pin Fin Heat Sink
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Package Cooled | BGA |
|---|---|
| Type | Top Mount |
| Part Status | Active |
| Category | Fans, Thermal Management |
| Material Finish | Black Anodized |
| Series | 901 |
| Family | Thermal - Heat Sinks |
| Width | 0.748" (19.00mm) |
| ECCN | EAR99 |
| Attachment Method | Clip |
| Material | Aluminum |
| Shape | Square, Pin Fins |
| Manufacturer | Wakefield-Vette |
| Length | 0.748" (19.00mm) |
| Thermal Resistance @ Forced Air Flow | 5.4°C/W @ 200 LFM |
| Height Off Base (Height of Fin) | 0.892" (22.65mm) |
| Thermal Resistance @ Natural | 10.6°C/W |
