| 1201M2S3V3BE2 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

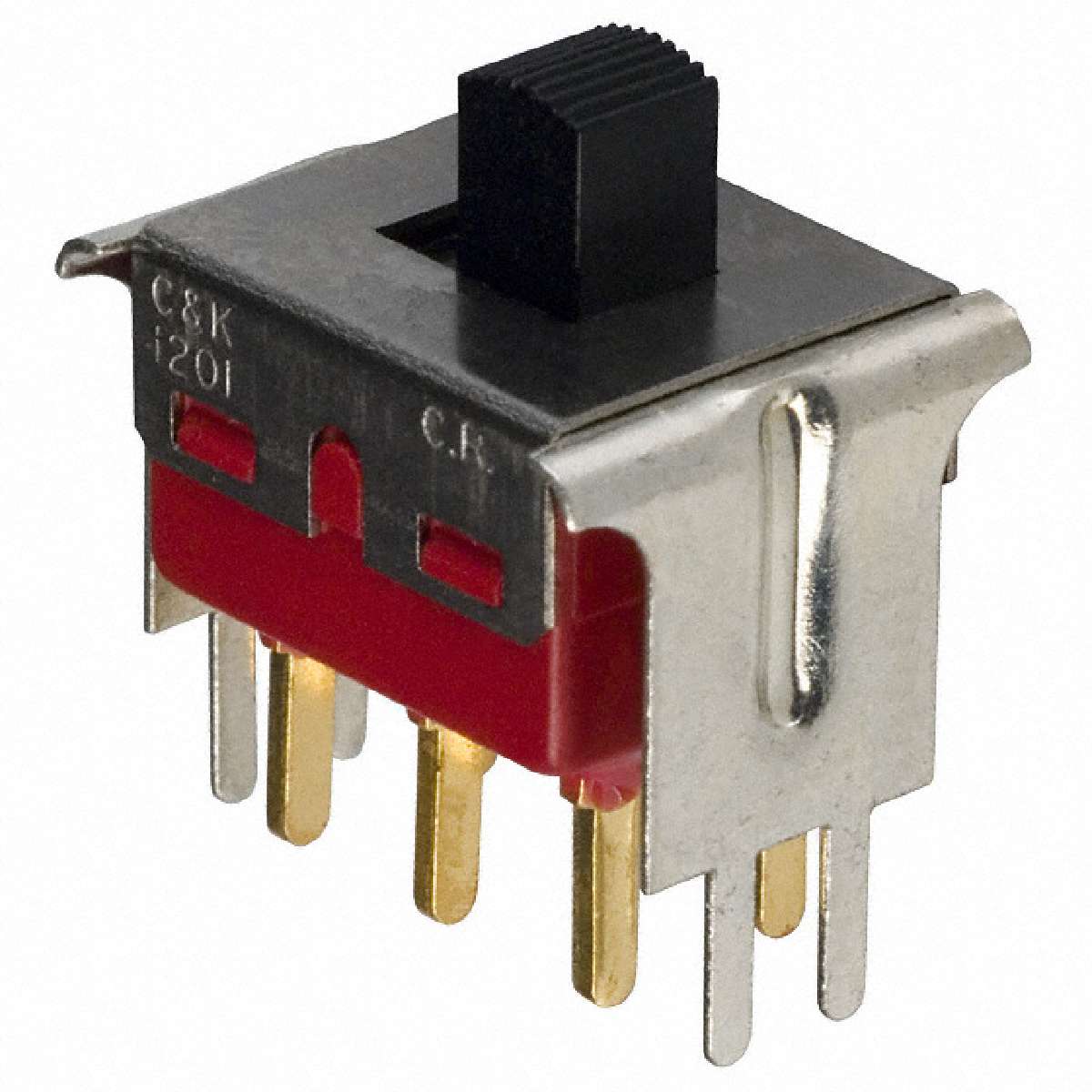

1000 Series DPDT On-On V Bracket Miniature Slide Switch
|
||
| 标准包装：80 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Circuit | DPDT |
|---|---|
| Switch Function | On-On |
| Actuator Length | 4.72mm |
| Termination Style | PC Pin |
| Features | Black Actuator, Epoxy Sealed Terminals |
| Electrical Life | 100,000 Cycles |
| Category | Switches |
| Switch Travel | 2.16mm |
| Family | Slide Switches |
| Operating Temperature | -30°C ~ 65°C |
| Packaging | Bulk |
| Current Rating | 0.4VA (AC/DC) |
| Actuator Type | Standard |
| Contact Finish | Gold |
| Voltage Rating - AC | 20V |
| Voltage Rating - DC | 20V |
| Part Status | Active |
| Manufacturer | C&K Components |
| Contact Material | Copper |
| Series | 1000 |
| Mounting Type | Through Hole |
| Contact Timing | Not Specified |
| Actuator Material | Polyamide (PA), Nylon |
| ECCN | EAR99 |
