| 473PPB162K | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

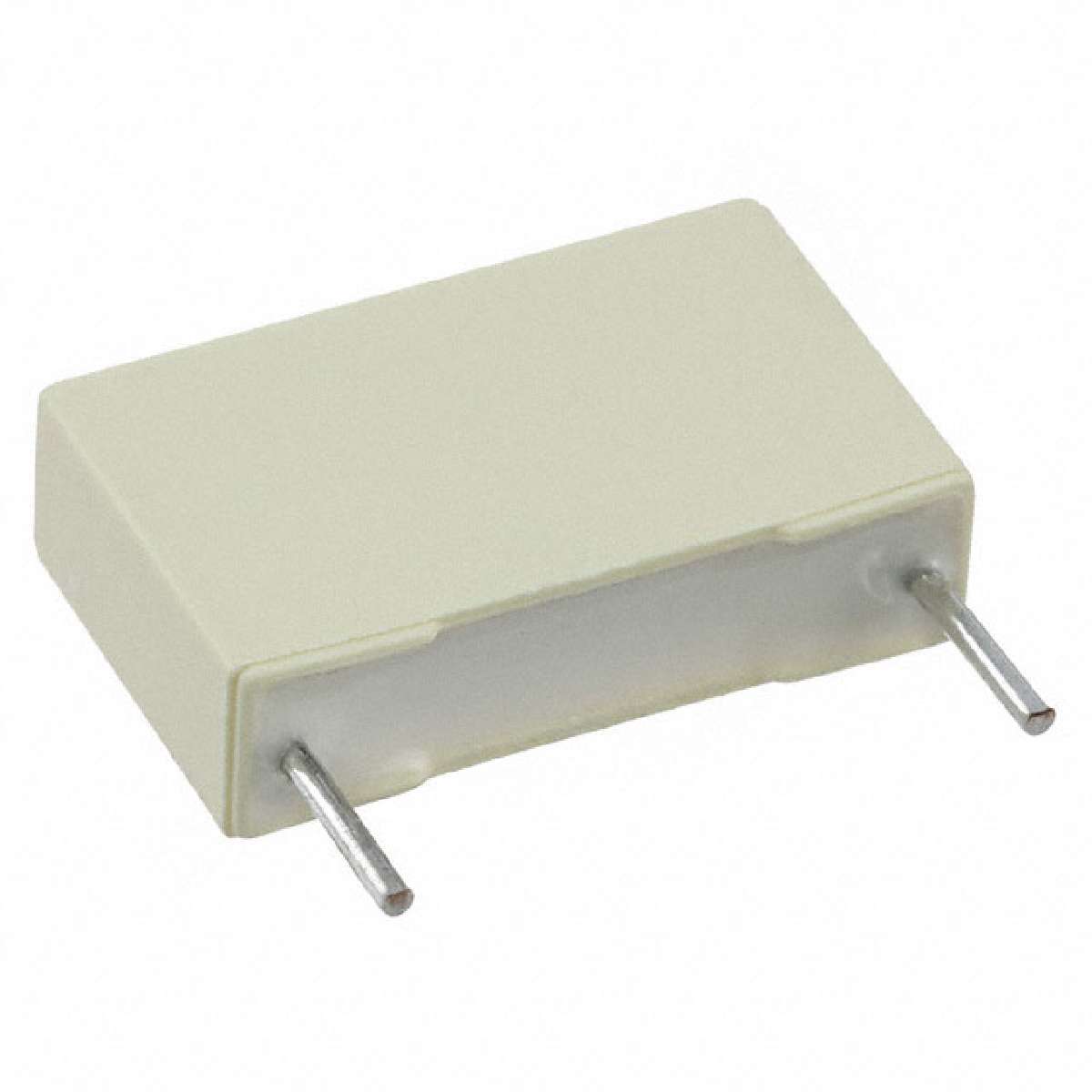

PPB Series 1600 V 470 nF ±10 % Through Hole Radial Polypropylene Film Capacitor
|
||
| 标准包装：200 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Termination | PC Pins |
|---|---|
| Package / Case | Radial |
| Capacitance | 0.047µF |
| Voltage Rating - DC | 1600V (1.6kV) |
| Size / Dimension | 1.260" L x 0.433" W (32.00mm x 11.00mm) |
| Category | Capacitors |
| Height - Seated (Max) | 0.787" (20.00mm) |
| Family | Film Capacitors |
| Mounting Type | Through Hole |
| Packaging | Bulk |
| Tolerance | ±10% |
| Lead Spacing | 1.083" (27.50mm) |
| Voltage Rating - AC | 650V |
| Dielectric Material | Polypropylene (PP), Metallized |
| Part Status | Active |
| Manufacturer | Illinois Capacitor |
| Series | PPB |
| Applications | Commutation; High Pulse, DV/DT; Snubber |
| Operating Temperature | -55°C ~ 105°C |
| ECCN | EAR99 |
