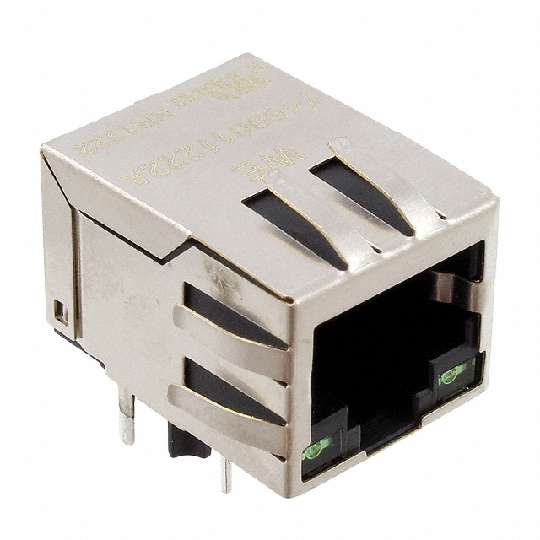

7499011222A

1 Port 100 Base-T Right Angle Green LED Integrated RJ45 Transformer

Manufacturer Wurth Electronics MPN 7499011222A SPQ 1 ECCN EAR99 Schedule B -- RoHS -- Datasheet 7499011222A.pdf

SP1034 Dollar $6.86271 RMB ￥56.99925 Stock type SP1034 Stock num 20 Stepped num price 29+ $6.86271 145+ $6.40061 SP1034 Dollar $7.29058 RMB ￥60.55299 Stock type SP1034 Stock num 20 Stepped num price 5+ $7.29058 10+ $7.11525 29+ $6.94415 58+ $6.77872 SP1027 Dollar $11.47 RMB ￥95.26578 Stock type SP1027 Stock num 64 Stepped num price 8+ $11.47

Quote

Demand quantity		Target price
Contact number		name
company		email

Product parameter

-Contact Finish	Gold
-Number of Cores per Jack	4
-Housing Material	Thermoplastic
-Mounting Type	Through Hole
-Contact Finish Thickness	30µin (0.76µm)
-Height Above Board	0.549" (13.95mm)
-Number of Ports	1
-Orientation	90° Angle (Right)
-Part Status	Active
-Contact Material	Tin
-Family	Modular Connectors - Jacks With Magnetics
-Operating Temperature	-40°C ~ 85°C
-Number of Rows	1
-LED Color	Green - Green
-Manufacturer	Wurth Electronics Inc
-Applications	10/100 Base-T, AutoMDIX
-Shielding	Shielded, EMI Finger
-Packaging	Tube
-Termination	Solder
-Tab Direction	Down
-Features	Board Guide
-Category	Connectors, Interconnects
-Series	WE-RJ45
-Shield Material	Copper Alloy
-Connector Type	RJ45
-ECCN	EAR99
