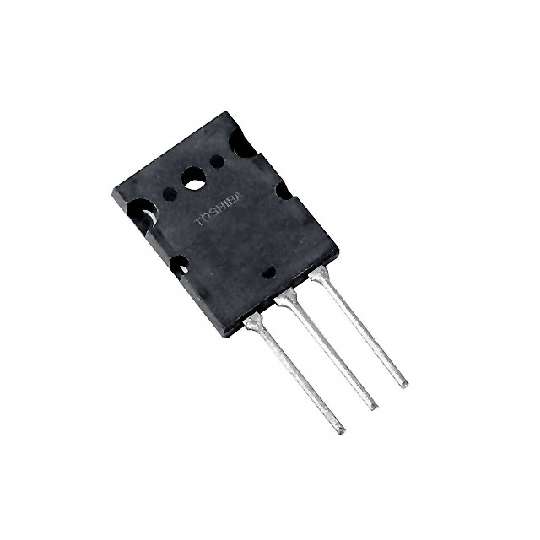

2SA1943-O(Q)

Transistor: PNP; bipolar; 230V; 15A; 150W; TO3PL

Manufacturer Toshiba MPN 2SA1943-O(Q) SPQ 1 ECCN -- Schedule B -- RoHS -- Datasheet --

SP1028 Dollar $5.1584 RMB ￥42.84385 Stock type SP1028 Stock num 74 Stepped num price 1+ $5.1584 10+ $3.1217 30+ $2.4273 50+ $2.2878 100+ $2.18395 300+ $2.1142 500+ $2.1018 1000+ $2.09095 SP1034 Dollar $7.77032 RMB ￥64.53754 Stock type SP1034 Stock num 379 Stepped num price 1+ $7.77032 25+ $7.53548 50+ $7.30888 SP1034 Dollar $7.94089 RMB ￥65.95424 Stock type SP1034 Stock num 618 Stepped num price 100+ $7.94089 500+ $7.78227 SP1034 Dollar $7.53548 RMB ￥62.58704 Stock type SP1034 Stock num 618 Stepped num price 25+ $7.53548 50+ $7.30888 SP1038 Dollar $2.40607 RMB ￥19.98397 Stock type SP1038 Stock num 4 Stepped num price 1+ $2.40607

Quote

Demand quantity		Target price
Contact number		name
company		email

Product parameter

-Vce Saturation (Max) @ Ib, Ic	3V @ 800mA, 8A
-Package / Case	TO-3PL
-Transistor Type	PNP
-Current - Collector (Ic) (Max)	15A
-Category	Discrete Semiconductor Products
-Voltage - Collector Emitter Breakdown (Max)	230V
-Mounting Type	Through Hole
-Operating Temperature	150°C (TJ)
-Packaging	Tube
-Frequency - Transition	30MHz
-Power - Max	150W
-Supplier Device Package	TO-3P(L)
-Part Status	Active
-Manufacturer	Toshiba Semiconductor and Storage
-Family	Transistors - Bipolar (BJT) - Single
-Current - Collector Cutoff (Max)	5µA (ICBO)
-DC Current Gain (hFE) (Min) @ Ic, Vce	80 @ 1A, 5V
