| -FET Feature | Logic Level Gate |

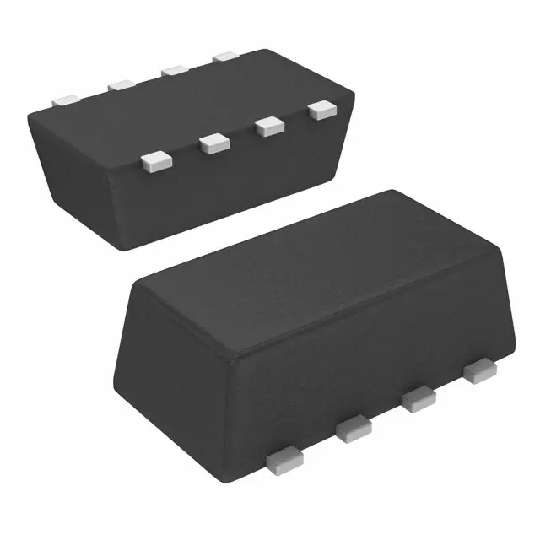

| -Package / Case | 8-SMD, Flat Lead |
| -Drain to Source Voltage (Vdss) | 30V |
| -Current - Continuous Drain (Id) @ 25°C | 4A, 3.7A |
| -Part Status | Active |
| -Manufacturer | Vishay Siliconix |
| -Series | TrenchFET® |
| -Vgs(th) (Max) @ Id | 3V @ 250µA |
| -Operating Temperature | -55°C ~ 150°C (TJ) |
| -Packaging | Cut Tape (CT) |
| -Rds On (Max) @ Id, Vgs | 65 mOhm @ 3.1A, 10V |
| -Power - Max | 3.12W, 3.1W |
| -Supplier Device Package | 1206-8 ChipFET™ |
| -Gate Charge (Qg) @ Vgs | 7nC @ 10V |
| -Category | Discrete Semiconductor Products |
| -FET Type | N and P-Channel |
| -Family | Transistors - FETs, MOSFETs - Arrays |
| -Mounting Type | Surface Mount |
| -Input Capacitance (Ciss) @ Vds | 220pF @ 15V |
| -ECCN | EAR99 |
