418117270908

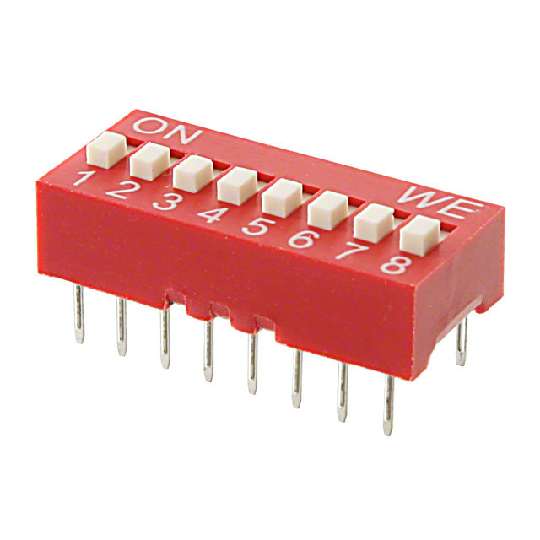

DIP SWITCH 2.54MM PITCH 8POL 24V

Manufacturer Wurth Electronics MPN 418117270908 SPQ 1 ECCN -- Schedule B -- RoHS -- Datasheet --

SP1034 Dollar $5.35394 RMB ￥44.46794 Stock type SP1034 Stock num 95 Stepped num price 2+ $5.35394 10+ $5.08614 SP1034 Dollar $5.26495 RMB ￥43.72882 Stock type SP1034 Stock num 95 Stepped num price 23+ $5.26495 46+ $5.03835 92+ $4.76684 184+ $4.58762

Quote

Demand quantity		Target price
Contact number		name
company		email

Product parameter

-Voltage Rating	24VDC
-Termination Style	PC Pin
-Electrical Life	2,000 Cycles
-Washable	No
-Packaging	Tube
-Circuit	SPST
-Part Status	Active
-Actuator Level	Raised
-Mechanical Life	5,000 Cycles
-Series	WS-DITV
-Operating Temperature	-40°C ~ 85°C
-Pitch	0.100" (2.54mm), Full
-Contact Finish	Gold
-Body Material	Polyamide (PA66), Nylon 6/6
-Manufacturer	Wurth Electronics Inc
-Mounting Type	Through Hole
-Height Above Board	0.189" (4.80mm)
-Actuator Type	Slide (Standard)
-Category	Switches
-Length	0.839" (21.30mm)
-Number of Positions	8
-Family	DIP Switches
-Current Rating	25mA
