SP103A-1123LST.GN

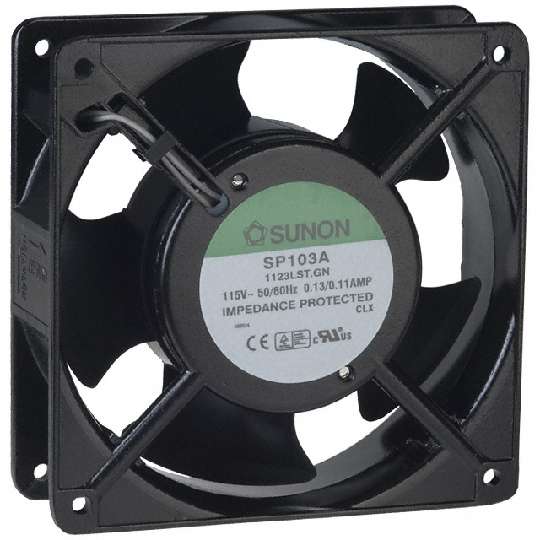

SP Series 2200/2000 RPM 120 x 120 x 38 mm 76/70 CFM 115 VAC Sleeve Bearing Fan

Manufacturer Sunonwealth Electric Machine Industry MPN SP103A-1123LST.GN SPQ 1 ECCN EAR99 Schedule B -- RoHS -- Datasheet --

Quote

Demand quantity		Target price
Contact number		name
company		email

Product parameter

-Termination	2 Terminals
-Material - Blade	Polybutylene Terephthalate (PBT)
-Voltage Range	85 ~ 125VAC
-Part Status	Active
-Manufacturer	Sunon Fans
-Air Flow	70.0 CFM (1.98m³/min)
-Voltage - Rated	115VAC
-Noise	36 dB(A)
-Family	AC Fans
-Width	38mm
-Bearing Type	Sleeve
-Current Rating	0.130A
-Static Pressure	0.080 in H2O (20.0 Pa)
-Approvals	CE, CSA, TUV, UL
-Size / Dimension	Square - 120mm L x 120mm H
-Category	Fans, Thermal Management
-Material - Frame	Aluminum
-Weight	1.2 lbs (544.3g)
-Series	SP
-Power (Watts)	11.0W
-RPM	2000 RPM
-Operating Temperature	14 ~ 158°F (-10 ~ 70°C)
-Fan Type	Tubeaxial
-ECCN	EAR99
