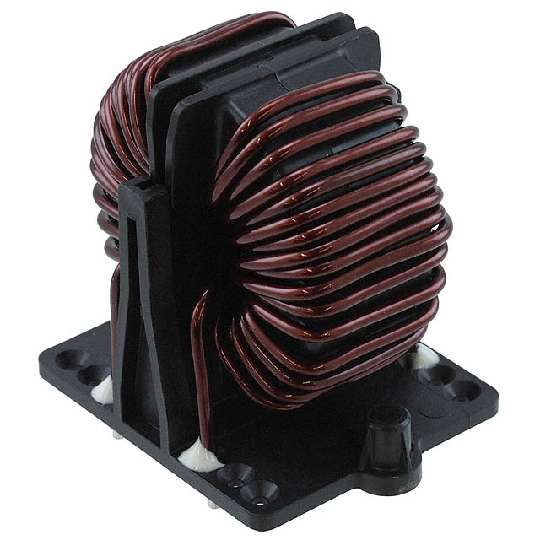

RB8522-16-3M0

Schaffner 3000 μH -30 → +50% 引线型电感器, 0.0004MHz最大自谐振频率, 16A Idc, 0.0084Ω Rdc

Manufacturer Schaffner EMC Inc. MPN RB8522-16-3M0 SPQ 1 ECCN -- Schedule B -- RoHS -- Datasheet RB8522-16-3M0.pdf

SP1027 Dollar $39.23949 RMB ￥325.90939 Stock type SP1027 Stock num 60 Stepped num price 4+ $39.23949

Quote

Demand quantity		Target price
Contact number		name
company		email

Product parameter

-Inductance:	3 mH
-Length:	50 mm
-Manufacturer:	Schaffner
-Factory Pack Quantity:	20
-Maximum DC Current:	16 A
-Termination Style:	Radial
-Product Category:	Common Mode Filters / Chokes
-Height:	58 mm
-Width:	43.4 mm
-Self Resonant Frequency:	DC to 400 Hz
-Operating Temperature Range:	- 40 C to + 125 C
-Brand:	Schaffner
-RoHS:	Details
-Package / Case:	50 mm x 43.4 mm x 58 mm
-Maximum DC Resistance:	8.4 mOhms
