| -Packaging: | Reel |

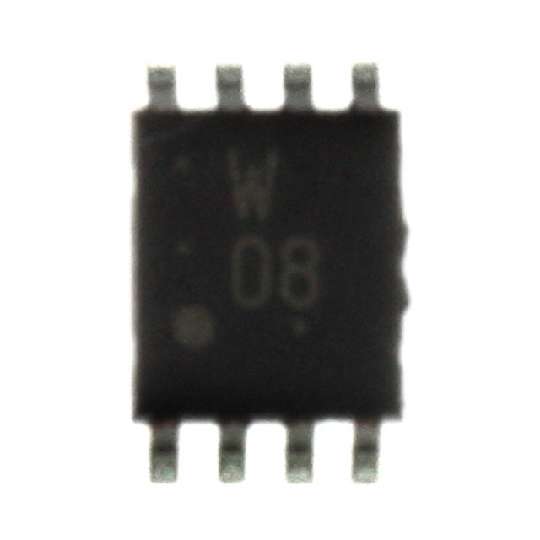

| -Product: | Single-Function Gate |
| -Logic Family: | TC7W |
| -Operating Temperature Range: | - 40 C to + 85 C |
| -Number of Output Lines: | 1 Output |
| -Package / Case: | SSOP-8 |
| -High Level Output Current: | - 5.2 mA |
| -Supply Voltage - Max: | 6 V |
| -Unit Weight: | 0.000825 oz |
| -Number of Gates: | 2 Gate |
| -Number of Input Lines: | 2 Input |
| -Manufacturer: | Toshiba |
| -Series: | TC7W08 |
| -Brand: | Toshiba |
| -Low Level Output Current: | 5.2 mA |
| -Logic Function: | AND |
| -Width: | 2.8 mm |
| -Function: | AND |
| -Minimum Operating Temperature: | - 40 C |
| -Pd - Power Dissipation: | 300 mW |
| -Supply Voltage - Min: | 2 V |
| -Logic Type: | CMOS |
| -Height: | 1.1 mm |
| -Propagation Delay Time: | 6 ns |
| -Mounting Style: | SMD/SMT |
| -Output Current: | 25 mA |
| -Length: | 2.9 mm |
| -Operating Supply Voltage: | 2.5 V, 3.3 V, 5 V |
| -Factory Pack Quantity: | 3000 |
| -RoHS: | Details |
| -Product Category: | Logic Gates |
| -Maximum Operating Temperature: | + 85 C |
