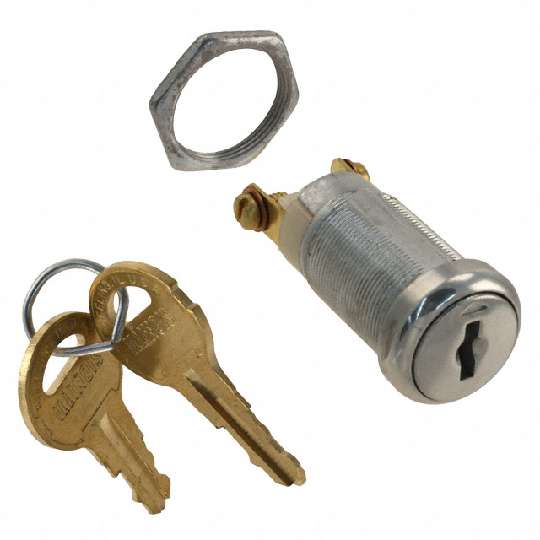

SWK121F315

2位置 钥匙开关, 单刀单掷, 15 A@ 24 V 直流，5 A@ 115 V 交流, 平面, 螺丝接端, -30 → +85°C

Manufacturer TE Connectivity MPN SWK121F315 SPQ 1 ECCN -- Schedule B -- RoHS -- Datasheet --

SP1027 Dollar $134.23667 RMB ￥1114.92251 Stock type SP1027 Stock num 271 Stepped num price 1+ $134.23667 2+ $129.4095 3+ $125.28697 5+ $121.73855 10+ $118.66335 20+ $115.98263 50+ $113.63376 100+ $111.56621 250+ $109.73938

Quote

Demand quantity		Target price
Contact number		name
company		email

Product parameter

-Actuator Type	Flat Key
-Depth Behind Flange	45.20mm
-Angle of Throw	90°
-Voltage Rating - AC	115V
-Voltage Rating - DC	24V
-Electrical Life	20,000 Cycles
-Category	Switches
-Series	SWK12
-Mechanical Life	20,000 Cycles
-Panel Cutout Dimensions	Circular - 19.20mm Dia
-Operating Temperature	-30°C ~ 85°C
-Current Rating	5A (AC), 15A (DC)
-Circuit	SPST
-Switch Function	On-Off
-Key Removable Positions	2 only
-Termination Style	Screw Terminal
-Part Status	Active
-Manufacturer	TE Connectivity ALCOSWITCH Switches
-Contact Material	Silver (Ag)
-Number of Positions	2
-Family	Keylock Switches
-Mounting Type	Panel Mount
-Contact Timing	Non-Shorting (BBM)
