SS12SDH2

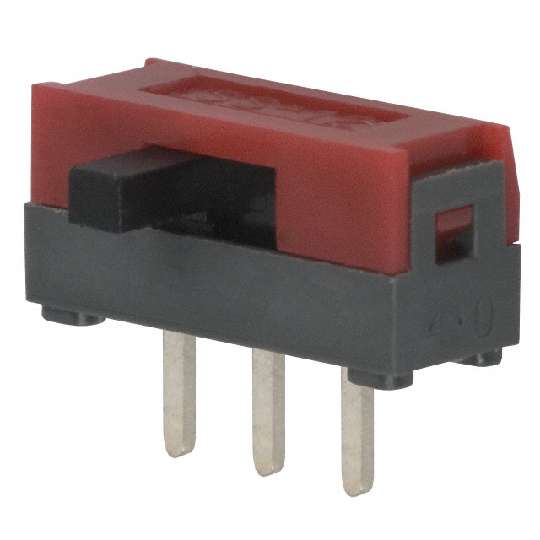

SS Series Ultra Mini SPDT On-None-On Side Actuated Through Hole Slide Switch

Manufacturer NKK Switches MPN SS12SDH2 SPQ 100 ECCN EAR99 Schedule B -- RoHS -- Datasheet --

SP1027 Dollar $2.11684 RMB ￥17.58173 Stock type SP1027 Stock num 900 Stepped num price 1+ $2.11684 10+ $2.05933 25+ $1.9065 50+ $1.83272 100+ $1.7112 250+ $1.57263 500+ $1.47777 1000+ $1.42616 2500+ $1.3764 SP1038 Dollar $1.18642 RMB ￥9.85399 Stock type SP1038 Stock num 11 Stepped num price 1+ $1.18642 SP1039 Dollar $2.0475 RMB ￥17.00581 Stock type SP1039 Stock num 2500 Stepped num price 4+ $2.0475 5+ $2.00655 10+ $1.89735 25+ $1.87005 50+ $1.7745 250+ $1.51515 945+ $1.4742

Quote

Demand quantity		Target price
Contact number		name
company		email

Product parameter

-Mounting Angle:	Straight
-Switch Function:	ON - ON
-Actuator:	Side
-Voltage Rating AC:	28 V
-Operating Temperature Range:	- 15 C to + 60 C
-Factory Pack Quantity:	1
-Brand:	NKK Switches
-Termination Style:	Solder
-Product Category:	Slide Switches
-Contact Plating:	Silver
-Type:	Ultra-Miniature Slide Switches
-Mounting Style:	Through Hole
-Packaging:	Bulk
-Travel:	2 mm
-Manufacturer:	NKK Switches
-Series:	SS Series
-Contact Form:	SPDT
-Part # Aliases:	SS-12SDH2
-RoHS:	Details
-Contact Material:	Brass
-Flammability Rating:	UL 94 V-0
-Illumination:	Non-Illuminated
-Contact Current Rating:	0.1 A at 30 V
-ECCN	EAR99
