SDR08540M3-01

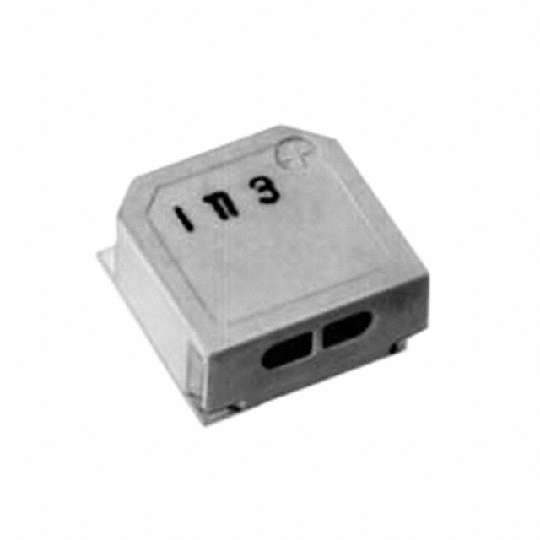

SDR Series 88dB 85mA 3volts Audio Indicator Buzzer

Manufacturer TDK Corporation MPN SDR08540M3-01 SPQ 1 ECCN EAR99 Schedule B -- RoHS -- Datasheet SDR08540M3-01.pdf

SP1034 Dollar $3.77316 RMB ￥31.33854 Stock type SP1034 Stock num 78 Stepped num price 1000+ $3.77316 2000+ $3.69782 4000+ $3.62373 SP1034 Dollar $3.16017 RMB ￥26.24726 Stock type SP1034 Stock num 78 Stepped num price 250+ $3.16017 500+ $3.09275 SP1027 Dollar $6.8975 RMB ￥57.28821 Stock type SP1027 Stock num 3544 Stepped num price 27+ $6.8975 50+ $5.983 100+ $5.6265 500+ $4.991 1000+ $1.767 2000+ $1.5655

Quote

Demand quantity		Target price
Contact number		name
company		email

Product parameter

-Sound Pressure Level	88dB @ 3V, 10cm
-Voltage Range	0 ~ 5V
-Part Status	Active
-Manufacturer	TDK Corporation
-Port Location	Side
-Series	SDR
-Operating Mode	Single Tone
-Frequency	2.67kHz
-Current - Supply	85mA
-Packaging	Cut Tape (CT)
-Input Type	Zero-Peak Signal
-Termination	Solder Pads
-Size / Dimension	8.5mm L x 8.5mm W x 4.3mm H
-Category	Audio Products
-Voltage - Rated	3V
-Height - Seated (Max)	*
-Family	Alarms, Buzzers, and Sirens
-Mounting Type	Surface Mount
-Operating Temperature	-40°C ~ 85°C
-Technology	Magnetic
-Driver Circuitry	Transducer, Externally Driven
-ECCN	EAR99
