| -Voltage - Isolation | 3.75kV (3750V) |
| -Type | Constant Current |
| -Topology | AC DC Converter |
| -Termination Style | 5.5mm Socket, Screw Terminal |
| -Approvals | CE, cULus |
| -Size / Dimension | 5.41" L x 1.98" W x 0.91" H (137.5mm x 50.2mm x 23.0mm) |
| -Category | Power Supplies - External/Internal (Off-Board) |
| -Manufacturer | Recom Power |
| -Voltage - Input (Max) | 264VAC |

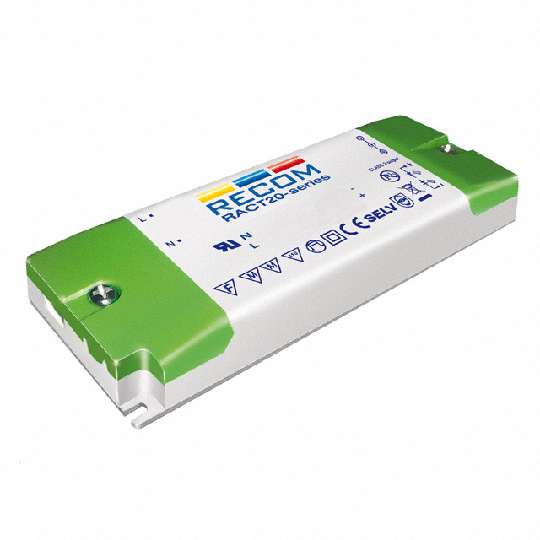

| -Series | LIGHTLINE RACT20 |
| -Family | LED Drivers |
| -Mounting Type | Chassis Mount |
| -Number of Outputs | 1 |
| -Ratings | IP20 |
| -Current - Output (Max) | 700mA |
| -Voltage - Output | 15 ~ 28 V |
| -Features | OTP, SCP |
| -Part Status | Active |
| -Efficiency | 81% |
| -Weight | 0.32 lb (145.15g) |
| -Dimming | Triac |
| -Power (Watts) | 20W |
| -Voltage - Input (Min) | 180VAC |
| -Operating Temperature | -30°C ~ 50°C |
