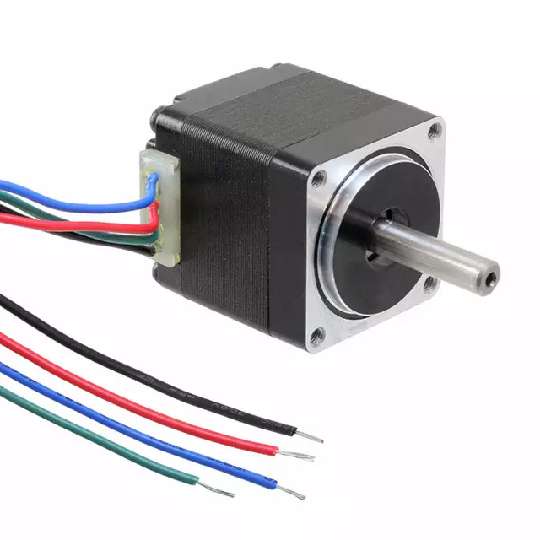

| -NEMA Frame Size | 11 |
| -Type | Hybrid |
| -Accuracy | ±5% |
| -Step Angle | 1.8° |
| -Diameter - Shaft | 0.197" (5.00mm) |
| -Coil Type | Bipolar |
| -Size / Dimension | Square - 1.100" x 1.100" (28.00mm x 28.00mm) |
| -Category | Motors, Solenoids, Driver Boards/Modules |
| -Weight | 0.242 lb (109.77g) |
| -Series | QMot QSH2818 |
| -Family | Stepper Motors |
| -Operating Temperature | -20°C ~ 50°C |
| -Current Rating | 0.67A |
| -Steps per Revolution | 200 |
| -Mounting Hole Spacing | 0.905" (22.98mm) |
| -Rotor Inertia | 9gcm² |
| -Termination Style | Wire Leads |
| -Approvals | CE |
| -Features | Flatted Shaft |
| -Part Status | Active |
| -Manufacturer | Trinamic Motion Control GmbH |
| -Voltage - Rated | 3.8VDC |
| -Coil Resistance | 5.6 Ohms |
| -Length - Shaft and Bearing | 0.787" (20.00mm) |
| -Torque - Holding (oz-in / mNm) | 8.49 / 60 |
