| -Torque - Max Momentary (oz-in / mNm) |
79.31 / 560 |
| -Mounting Hole Spacing |
1.417" (36.00mm) |
| -Torque - Rated (oz-in / mNm) |
26.2 / 185 |
| -Diameter - Shaft |
0.197" (5.00mm) |
| -Part Status |
Active |
| -Manufacturer |
Trinamic Motion Control GmbH |
| -Weight |
1.5 lbs (680.4g) |
| -Power - Rated |
77.5W |
| -Family |
Motors - AC, DC |
| -Length - Shaft and Bearing |
0.866" (22.00mm) |
| -Type |
DC Motor |
| -Function |
Standard |
| -Termination Style |
Wire Leads |
| -Size / Dimension |
Square - 1.654" x 1.654" (42.00mm x 42.00mm) |
| -Category |
Motors, Solenoids, Driver Boards/Modules |
| -Motor Type |
Brushless DC (BLDC) |
| -Voltage - Rated |
24VDC |
| -Series |

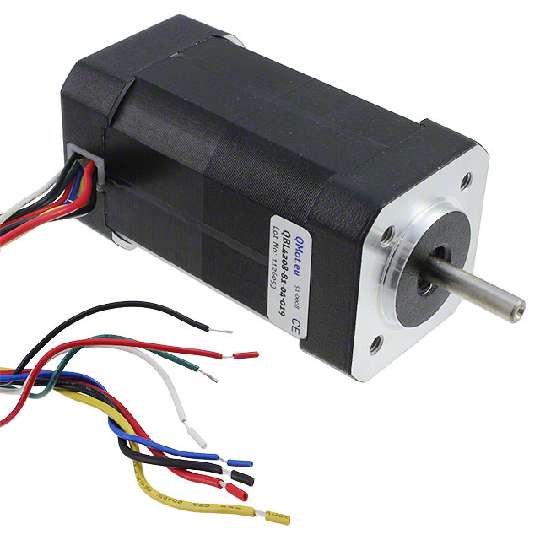

QMot QBL4208 |
| -RPM |
4000 RPM |
| -Operating Temperature |
-20°C ~ 40°C |
