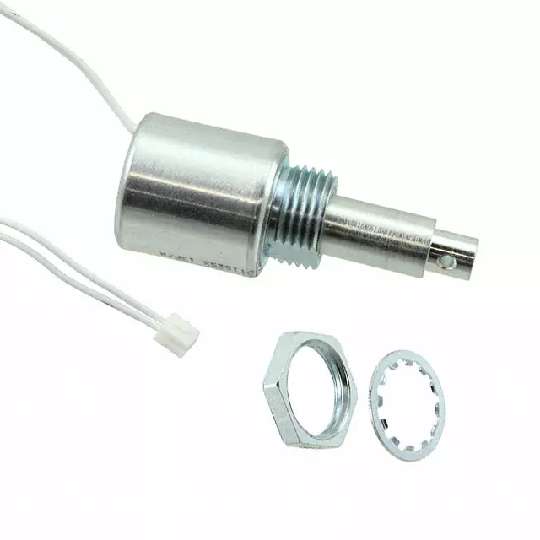

DSTL-0829-24

DC SOLENOID TUBULAR PULL

制造商 Delta Electronics 制造商零件编号 DSTL-0829-24 标准包装 192 ECCN -- Schedule B -- RoHS -- 规格说明书 --

询价

需求数量		目标价格
联系电话		姓名
公司		邮箱

产品参数

-Shaft Detail	Clevis
-Termination Style	Wire Leads with Connector
-Bushing Thread	3/4-16 UNF-2A
-Part Status	Active
-Manufacturer	Delta Electronics
-Voltage - Rated	24VDC
-Stroke Length	0.500" (12.70mm)
-Power (Watts)	76W
-Duty Cycle	Continuous
-Technology	Electromechanical
-Type	Closed Frame (Pull), Tubular
-Diameter - Shaft	0.307" (7.80mm)
-Size / Dimension	0.961" Dia x 1.142" L (24.40mm x 29.00mm)
-Category	Motors, Solenoids, Driver Boards/Modules
-Weight	0.225 lb (102.06g)
-Series	DSTL
-Family	Solenoids, Actuators
-Mounting Type	Chassis Mount
-DC Resistance (DCR)	7.5 Ohm
