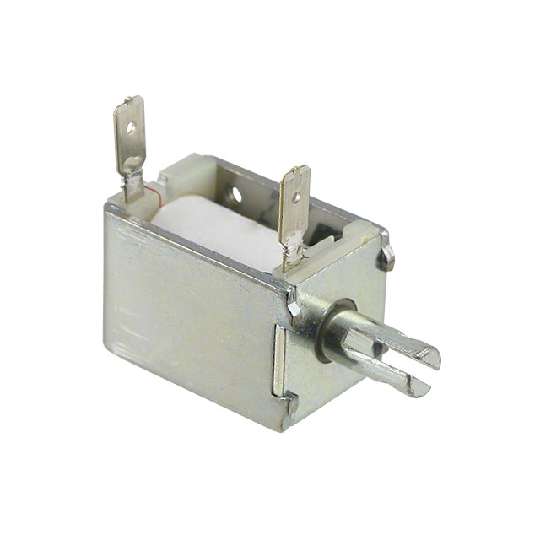

F0411A

SOLENOID OPEN 1/2" CONT 12VDC

制造商 Pontiac Coil, Inc. 制造商零件编号 F0411A 标准包装 1 ECCN -- Schedule B -- RoHS -- 规格说明书 --

询价

需求数量		目标价格
联系电话		姓名
公司		邮箱

产品参数

-Shaft Detail	Clevis
-Termination Style	Quick Connect - 0.187" (4.7mm)
-Size / Dimension	1.160" L x 0.750" W x 0.750" H (29.46mm x 19.05mm x 19.05mm)
-Category	Motors, Solenoids, Driver Boards/Modules
-Voltage - Rated	12VDC
-Stroke Length	0.500" (12.70mm)
-Power (Watts)	4W
-Duty Cycle	Continuous
-Technology	Electromechanical
-Type	Open Frame (Pull)
-Diameter - Shaft	0.250" (6.35mm)
-Part Status	Active
-Manufacturer	Pontiac Coil Inc.
-Series	L-22
-Family	Solenoids, Actuators
-Mounting Type	Chassis Mount
-DC Resistance (DCR)	36 Ohm
